ABS07-32.768KHZ-9-T
Crystal, Low Profile, 32.768 kHz, SMD, 3.2mm x 1.5mm, 9 pF, 20 ppm, ABS07 Series

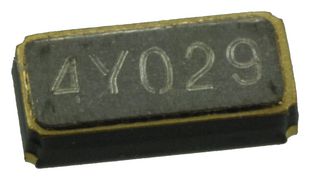

Image is for illustrative purposes only. Please refer to product description.
ManufacturerABRACON
Manufacturer Part NoABS07-32.768KHZ-9-TCopy
Newark Part No.14N8751
Product RangeABS07 Series
Your Part Number
16,113 In Stock
Need more?
Same day shipping
Order before 6pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price | Promotional price |
|---|---|---|
| 1+ | $1.160 | $0.825 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.82
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerABRACON
Manufacturer Part NoABS07-32.768KHZ-9-TCopy
Newark Part No.14N8751
Product RangeABS07 Series
Technical Datasheet
Frequency Nom32.768kHz
Product RangeABS07 Series
Crystal TypeStandard
Crystal Frequency32.768kHz
Frequency Tolerance + / -20ppm
Frequency Stability + / --
Load Capacitance9pF
ESR70kohm
Crystal Case / PackageSMD, 3.2mm x 1.5mm
No. of Pins2Pins
Crystal MountingSMD
Operating Temperature Min-40°C
Operating Temperature Max85°C
SVHCNo SVHC (25-Jun-2025)
Alternatives for ABS07-32.768KHZ-9-T
6 Products Found
Product Overview
The ABS07-32.768KHZ-9-T is a 3.2 x 1.5 x 0.9mm Low Profile SMD Crystal with hermetically sealed and not moisture sensitive, load capacitance is of 9pF. Seam sealed ceramic package offers excellent environmental & heat resistance and extended industrial temperature range.
- Ageing ±3ppm per year (maximum)
- 500MΩ Insulation resistance
- Flexural mode
- 0.9mm Height ideal for high density circuit boards
- Guaranteed ESR of 60kΩ maximum for low power designs
Applications
Communications & Networking, Wireless, Consumer Electronics, Commercial, Industrial, Test & Measurement
Technical Specifications
Frequency Nom
32.768kHz
Crystal Type
Standard
Frequency Tolerance + / -
20ppm
Load Capacitance
9pF
Crystal Case / Package
SMD, 3.2mm x 1.5mm
Crystal Mounting
SMD
Operating Temperature Max
85°C
Product Range
ABS07 Series
Crystal Frequency
32.768kHz
Frequency Stability + / -
-
ESR
70kohm
No. of Pins
2Pins
Operating Temperature Min
-40°C
SVHC
No SVHC (25-Jun-2025)
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
