HW-USB-II-G

HW-USB-II-G is a USB II platform cable. The USB II platform cable provides integrated firmware to deliver high-performance, reliable and user-friendly configuration of AMD FPGAs and programming of AMD PROM and CPLD devices. The platform cable USB II cable optimizes direct programming of third-party SPI flash memory devices and indirect programming of SPI or parallel NOR flash memory devices via the FPGA JTAG port. In addition, platform cable USB II is a cost effective tool for debugging embedded software and firmware when used with AMD applications such as the Embedded Development Kit and ChipScope™ Pro Analyzer. It is an upgrade to and backwards compatible with platform cable USB. It has industry-leading performance and is compatible with full speed (USB 1.1) and Hi-Speed (USB 2.0) ports.

• Device programming and hardware debug, basic software debug
• USB host interface (USB 2.0), 0.4MB/s default bitstream programming speed
• 24MHz JTAG maximum clock speed
• Connection to target via PC4 JTAG or flying wire adapter cable (provided)
• On host hardware server application

Contents

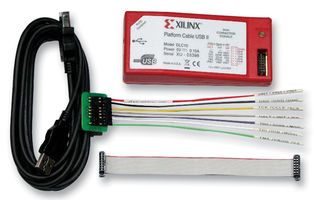

Platform cable USB II module, JTAG flying wire adapter cable, JTAG ribbon cable, USB cable.

Notes

Non-Cancellable and Non-Returnable (NCNR). This product has a warranty of Ninety (90) Days from date of purchase. AMD products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party.
