1-320551-3

Ring Tongue Terminal, M4, #8, 20 AWG, 0.6 mm², PIDG Series, Red

1-320551-3 - Ring Tongue Terminal, M4, #8, 20 AWG, 0.6 mm², PIDG Series, Red

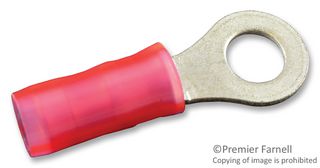

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
1-320551-3
Newark Part No.:
91B8661
Product Range
PIDG Series
Technical Datasheet:
1-320551-3   Datasheet
See all Technical Docs

Product Overview

The PIDG series terminal designed for uniform reliability in the most difficult circuit environments. They consist of a tin-plated copper or tin-plated phosphor bronze body for spring spades, plus a copper and coloured insulation sleeve fitted over a terminal barrel. The specialized design of tool dies and the construction of the terminal allows for uniform insulation thickness under crimping pressure, transmitting this pressure evenly to the centre of the crimping area. The body has serrations for maximum contact and tensile strength. The insulation sleeves and the corresponding tooling are colour-coded by wire-size for easier identification.
  • PIDG terminals have copper sleeve for improved wire insulation support
  • Specific tooling dedicated for different volumes or circumstances is available

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
M4

:
#8

:
20AWG

:
0.6mm²

:
PIDG Series

:
Red

:
Nylon (Polyamide)

Find similar products Choose and modify the attributes above to find similar products.
