320568
Ring Tongue Terminal, M4, #8, 10 AWG, 6 mm², PIDG Series, Yellow

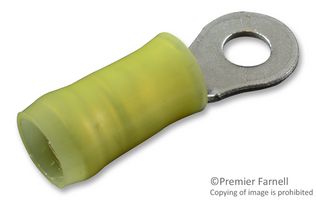

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No320568
Newark Part No.22C6528
Product RangePIDG Series
Technical Datasheet
12,910 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.751 |
| 10+ | $0.543 |
| 25+ | $0.499 |
| 100+ | $0.488 |
| 500+ | $0.433 |
| 1000+ | $0.417 |
| 2500+ | $0.401 |
Price for:Each
Minimum: 1
Multiple: 1
$0.75
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No320568
Newark Part No.22C6528
Product RangePIDG Series
Technical Datasheet
Stud Size - MetricM4
Stud Size - Imperial#8
Stud Size - Imperial8
Wire Size AWG Max10AWG
Conductor Area CSA6mm²
Product RangePIDG Series
Insulator ColourYellow
Insulator MaterialNylon (Polyamide)
SVHCNo SVHC (25-Jun-2025)
Product Overview
The 320568 is a Crimp Terminal with yellow nylon (polyamide) insulator, tin-plated copper body and pre-insulated insulator. 3 to 6mm² wire cross-section, straight orientation, M4 stud size, closed yellow barrel and 12 to 10AWG wire size.
- 300V Maximum voltage rating
- Regular wire/cable type
- Solid/stranded composition
Technical Specifications
Stud Size - Metric
M4
Stud Size - Imperial
8
Conductor Area CSA
6mm²
Insulator Colour
Yellow
SVHC
No SVHC (25-Jun-2025)
Stud Size - Imperial
#8
Wire Size AWG Max
10AWG
Product Range
PIDG Series
Insulator Material
Nylon (Polyamide)
Alternatives for 320568
3 Products Found
Associated Products
7 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
