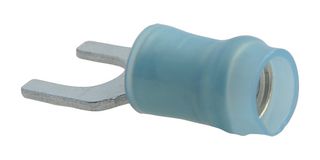

Fork / Spade Tongue Terminal, PIDG Series, 16 AWG, 14 AWG, 2 mm², M4, #8
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY - AMP
Manufacturer Part No321233Copy
Newark Part No.66H6969
Product RangePIDG Series
Your Part Number
2,003 In Stock
Need more?
Same day shipping
Order before 6pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $1.010 |
| 10+ | $0.857 |
| 25+ | $0.765 |
| 100+ | $0.727 |
| 500+ | $0.651 |
| 1000+ | $0.619 |
| 2500+ | $0.593 |
| 5000+ | $0.568 |
Price for:Each
Minimum: 1
Multiple: 1
$1.01
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY - AMP
Manufacturer Part No321233Copy
Newark Part No.66H6969
Product RangePIDG Series
Technical Datasheet
Product RangePIDG Series
Wire Size AWG Min16AWG
Wire Size (AWG)16AWG to 14AWG
Conductor Area CSA2mm²
Wire Size AWG Max14AWG
Stud Size - MetricM4
Stud Size - Imperial#8
Insulator MaterialNylon (Polyamide)
Stud Size - Imperial8
Insulator ColourBlue
Terminal MaterialCopper
SVHCNo SVHC (04-Feb-2026)
Product Overview
The 321233 is a Fork/Spade Tongue Terminal made of copper with tin plated finish. The PIDG® series terminal comes with a blue nylon insulated standard closed barrel. It accepts 16 to 14AWG regular wire.
- SPADE-024 Shape
- 300V Maximum voltage
Technical Specifications
Product Range
PIDG Series
Wire Size (AWG)
16AWG to 14AWG
Wire Size AWG Max
14AWG
Stud Size - Imperial
#8
Stud Size - Imperial
8
Terminal Material
Copper
Wire Size AWG Min
16AWG
Conductor Area CSA
2mm²
Stud Size - Metric
M4
Insulator Material
Nylon (Polyamide)
Insulator Colour
Blue
SVHC
No SVHC (04-Feb-2026)
