5747841-6
D Sub Connector, DB15, 15 Contacts, Plug, Solder, DA, AMPLIMITE HD-20 Series, Carbon Steel Body
Need more?
| Quantity | Price |
|---|---|
| 1+ | $6.970 |
| 10+ | $6.310 |
| 25+ | $5.990 |
| 50+ | $5.740 |
| 100+ | $5.450 |
| 500+ | $5.160 |
| 1000+ | $5.040 |
| 2500+ | $5.010 |
Product Information
Product Overview

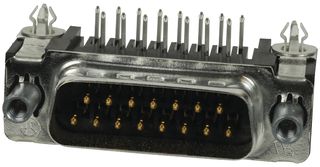

The 5747841-6 is a 15-position 2-row standard Right Angle Plug with gold-plated brass contacts, fixed female screwlocks and size-2 tin-plated carbon steel shell. The Amplimite HD-20 D-sub stacked PCB connector is member of the complete line of Amplimite subminiature D connector family which has been accepted by the electronic industry for their rugged design and ease of application. The low cost front metal-shell design compatible with full metal-shell connectors. Integral boardlock versions secure posted connectors to PC board prior to soldering. The HD-20 connector contacts are available in plating types to satisfy different applications.
- UL94V-0 Rated black thermoplastic housing
Applications
Industrial
Technical Specifications
Standard
AMPLIMITE HD-20 Series
DA
Through Hole Mount Right Angle
Gold over Palladium Nickel,Gold
No SVHC (25-Jun-2025)
Plug
15Contacts
Solder
Brass
Carbon Steel Body
Alternatives for 5747841-6
4 Products Found
Associated Products
8 Products Found
Legislation and Environmental
RoHS
RoHS
Product Compliance Certificate
