66740-8
Contact, Multimate, Type XII Series, Socket, Crimp, 12 AWG, Tin Plated Contacts

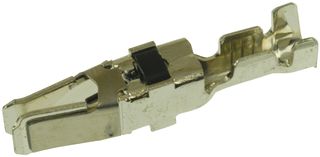

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No66740-8
Newark Part No.95F2733
Product RangeType XII Series
Technical Datasheet
248 In Stock
800 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $13.930 |
| 10+ | $12.970 |
| 25+ | $11.710 |
| 50+ | $11.150 |
| 100+ | $10.830 |
| 250+ | $9.930 |
| 500+ | $9.730 |
Price for:Each
Minimum: 1
Multiple: 1
$13.93
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No66740-8
Newark Part No.95F2733
Product RangeType XII Series
Technical Datasheet
Product RangeType XII Series
Contact Termination TypeCrimp
Wire Size AWG Max12AWG
Contact PlatingTin Plated Contacts
For Use WithG Series, M Series, CPC Connectors
Wire Size AWG Min16AWG
Contact MaterialCopper
SVHCLead
Product Overview
The 66740-8 is a crimp Socket Contact with copper body, tin-plating. 16 to 12AWG wire. This crimp socket contact is suitable for use with G series, M series, CPC connectors.
- 15A Test current
- 50µ" Contact mating area plating thickness
Applications
Industrial
Technical Specifications
Product Range
Type XII Series
Wire Size AWG Max
12AWG
For Use With
G Series, M Series, CPC Connectors
Contact Material
Copper
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
16AWG
SVHC
Lead
Technical Docs (3)
Alternatives for 66740-8
3 Products Found
Associated Products
5 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:To be advised
SVHC:Lead
