749805-8
D Sub Connector, DB15, 15 Contacts, Plug, Crimp, DA, AMPLIMITE HDP-20 Series, Carbon Steel Body

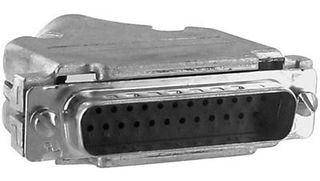

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No749805-8
Newark Part No.12M7045
Product RangeAMPLIMITE HDP-20 Series
Technical Datasheet
44 In Stock
100 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $26.510 |
| 5+ | $25.520 |
| 10+ | $24.540 |
| 25+ | $24.080 |
| 50+ | $23.620 |
| 100+ | $20.450 |
Price for:Each
Minimum: 1
Multiple: 1
$26.51
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No749805-8
Newark Part No.12M7045
Product RangeAMPLIMITE HDP-20 Series
Technical Datasheet
D Sub Connector TypeStandard
Product RangeAMPLIMITE HDP-20 Series
No. of Contacts15Contacts
D Sub Shell SizeDA
Contact Termination TypeCrimp
Connector MountingCable Mount
Contact MaterialBrass
Contact PlatingGold Plated Contacts
Connector Body MaterialCarbon Steel Body
SVHCBis(2-ethylhexyl) tetrabromophthalate covering any of the individual isomers and/or combinations thereof
Product Overview
The 749805-8 is a 15-position unassembled shielded D-sub Plug Kit with full metal tin over copper plated steel shell, black polyester/GF nylon housing, nylon GF insert and 24 to 20AWG crimp snap-in contacts.
- UL94V-0 Flammability rating
Applications
Industrial
Contents
Connector housing, Backshell with grommets, Hardware and Contacts.
Technical Specifications
D Sub Connector Type
Standard
Product Range
AMPLIMITE HDP-20 Series
D Sub Shell Size
DA
Connector Mounting
Cable Mount
Contact Plating
Gold Plated Contacts
SVHC
Bis(2-ethylhexyl) tetrabromophthalate covering any of the individual isomers and/or combinations thereof
Gender
Plug
No. of Contacts
15Contacts
Contact Termination Type
Crimp
Contact Material
Brass
Connector Body Material
Carbon Steel Body
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Bis(2-ethylhexyl) tetrabromophthalate covering any of the individual isomers and/or combinations thereof
