794956-1
Contact, PE Series, Socket, Crimp, 18 AWG, Tin Plated Contacts, VAL-U-LOK Series

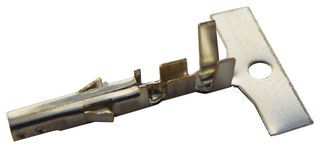

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No794956-1
Newark Part No.08H1111
Product RangePE Series
Technical Datasheet
4,300 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.145 |
| 25+ | $0.056 |
| 50+ | $0.055 |
| 100+ | $0.052 |
| 250+ | $0.049 |
| 500+ | $0.046 |
| 1000+ | $0.045 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.14
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No794956-1
Newark Part No.08H1111
Product RangePE Series
Technical Datasheet
Product RangePE Series
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max18AWG
Contact PlatingTin Plated Contacts
For Use WithVAL-U-LOK Series
Wire Size AWG Min22AWG
Contact MaterialBrass
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 794956-1 is a socket Signal Contact made of brass with tin plated finish. It accepts 22 to 18AWG wire size. The PE series crimp contact is suitable for VAL-U-LOK series connector system.
- 600VAC Operating voltage
- 9A Contact current rating
Applications
Industrial
Technical Specifications
Product Range
PE Series
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
22AWG
SVHC
No SVHC (21-Jan-2025)
Contact Gender
Socket
Wire Size AWG Max
18AWG
For Use With
VAL-U-LOK Series
Contact Material
Brass
Alternatives for 794956-1
3 Products Found
Associated Products
8 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
