LCC17A3W3PM2N0

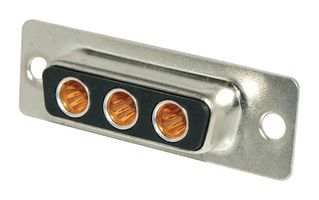

Combination Layout D Sub Connector, COOLPOWER® LCC17 Series, DA-3W3, Plug, 3 Contacts, 3 Power
Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMPHENOL COMMUNICATIONS SOLUTIONS
Manufacturer Part NoLCC17A3W3PM2N0
Newark Part No.49X1151
Product RangeCOOLPOWER® LCC17 Series
Technical Datasheet
14 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $27.350 |
| 5+ | $26.410 |
| 10+ | $25.480 |
| 25+ | $24.020 |
| 50+ | $23.500 |
| 100+ | $22.950 |
| 250+ | $21.410 |
Price for:Each
Minimum: 1
Multiple: 1
$27.35
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMPHENOL COMMUNICATIONS SOLUTIONS
Manufacturer Part NoLCC17A3W3PM2N0
Newark Part No.49X1151
Product RangeCOOLPOWER® LCC17 Series
Technical Datasheet
Product RangeCOOLPOWER® LCC17 Series
Insert ArrangementDA-3W3
No. of Signal Contacts0Contacts
No. of Contacts3Contacts
No. of Power Positions3
Contact Type3 Power
Contact Termination TypeSolder Cup
Connector MountingCable Mount
D Sub Shell SizeDA
Connector Body MaterialSteel Body
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
SVHCLead
Technical Specifications
Product Range
COOLPOWER® LCC17 Series
Gender
Plug
No. of Contacts
3Contacts
Contact Type
3 Power
Connector Mounting
Cable Mount
Connector Body Material
Steel Body
Contact Plating
Gold Plated Contacts
Insert Arrangement
DA-3W3
No. of Signal Contacts
0Contacts
No. of Power Positions
3
Contact Termination Type
Solder Cup
D Sub Shell Size
DA
Contact Material
Copper Alloy
SVHC
Lead
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:No
SVHC:Lead
