122393
RF / Coaxial Connector, TNC Coaxial, Straight Plug, Crimp, 50 ohm
Need more?
| Quantity | Price |
|---|---|
| 1+ | $15.060 |
| 5+ | $15.000 |
| 10+ | $14.930 |
| 25+ | $13.650 |
| 50+ | $13.170 |
| 100+ | $12.780 |
| 250+ | $12.420 |
Product Information
Product Overview

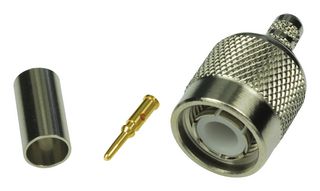

The 122393 is a TNC straight Crimp Plug with gold-plated phosphor bronze contacts, nickel-plated brass body and a PTFE insulator. The TNC connector series is a miniature, threaded weatherproof series with a constant 50Ω impedance and a frequency range of DC-11GHz. Threaded coupling interface ensures connector with not de-couple in vibration-intense applications. The TNC connector is produced with standard polarity. This RF connector is designed for Belden 9913, Belden 9914 and LMR-400 cable.
- Durable construction
- Standard thread direction
- 5000MΩ Minimum insulation resistance
- 500V Peak voltage rating
Applications
RF Communications, Communications & Networking, Industrial, Wireless, Sensing & Instrumentation
Technical Specifications
TNC Coaxial
Crimp
Belden 7810A, 8214, 9913, LMR-400
Gold Plated Contacts
Cable Mount
Lead
Straight Plug
50ohm
Phosphor Bronze
11GHz
-
