132139

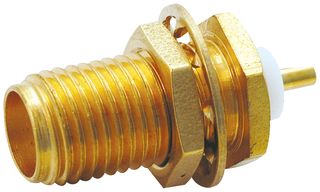

RF / Coaxial Connector, SMA Coaxial, Straight Bulkhead Jack, Solder, 50 ohm, Beryllium Copper
Need more?
| Quantity | Price |
|---|---|
| 1+ | $14.430 |
| 5+ | $14.130 |
| 10+ | $13.100 |
| 25+ | $12.610 |
| 50+ | $12.000 |
| 100+ | $10.480 |
| 250+ | $10.180 |
Product Information
Product Overview
The 132139 is a SMA straight Solder Cup Jack with gold-plated beryllium copper contacts, gold-plated brass body and a PTFE insulator. Using a threaded interface, SMA 50Ω connector is semi-precision units that provide excellent electrical performance and outstanding mechanical durability. SMA connector offers high performance in a compact design. SMA interconnects offer a precise and simple means of phase adjustment for microwave devices. Designed to accordance with MIL-C-39012 and CECC 22110/111, SMA connector can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.
- Lightweight, compact and vibration-proof design
- Threaded coupling mechanism
- Standard polarity
- Standard thread direction
- 5000MΩ Insulation resistance
- 500 Mating cycles
Applications
RF Communications, Communications & Networking, Sensing & Instrumentation, Computers & Computer Peripherals, Test & Measurement
Technical Specifications
SMA Coaxial
Solder
-
Gold Plated Contacts
Panel Mount
Lead
Straight Bulkhead Jack
50ohm
Beryllium Copper
18GHz
-
