MAX7221ENG+
LED DISPLAY DRIVER, 8 DIGIT, DIP-24

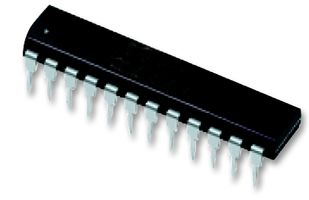

Image is for illustrative purposes only. Please refer to product description.
ManufacturerANALOG DEVICES
Manufacturer Part NoMAX7221ENG+Copy
Manufacturer Standard Lead Time10 weeks
Newark Part No.38AC1919
Your Part Number
3 In Stock
Need more?
Delivery in 4-6 Business Days(UK stock)
Order before 6pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $33.880 |
| 5+ | $31.390 |
| 10+ | $28.890 |
| 30+ | $26.390 |
| 60+ | $25.220 |
| 105+ | $24.410 |
| 255+ | $23.610 |
Price for:Each
Minimum: 1
Multiple: 1
$33.88
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerANALOG DEVICES
Manufacturer Part NoMAX7221ENG+Copy
Manufacturer Standard Lead Time10 weeks
Newark Part No.38AC1919
Technical Datasheet
Display Driver TypeLED Display Driver
No. of Digits8
No. of Segments7
Driver Case StyleDIP
IC Case / PackageDIP
No. of Pins24Pins
Supply Voltage Min4V
Interface TypeSPI
Supply Voltage Max5.5V
InterfacesSPI
Product Range-
Operating Temperature Min-40°C
Operating Temperature Max85°C
SVHCNo SVHC (04-Feb-2026)
Technical Specifications
Display Driver Type
LED Display Driver
No. of Segments
7
IC Case / Package
DIP
Supply Voltage Min
4V
Supply Voltage Max
5.5V
Product Range
-
Operating Temperature Max
85°C
SVHC
No SVHC (04-Feb-2026)
No. of Digits
8
Driver Case Style
DIP
No. of Pins
24Pins
Interface Type
SPI
Interfaces
SPI
Operating Temperature Min
-40°C
MSL
MSL 1 - Unlimited
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
