Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | ARDUINO |
|---|---|
| Manufacturer Part No | TSX00002Copy |
| Manufacturer Standard Lead Time | 4 weeks |
| Newark Part No. | 47AC6340 |
| Product Range | MKR Shields |
| Also Known As | GTIN UPC EAN: 813747020237 |
| Your Part Number | |
| Technical Datasheet |
29 In Stock
Need more?
15 US Stock delivery in 2-3 Business Days Order before 6pm EST Standard Shipping
14 UK Stock available for delivery in 4-6 Business Days
Order before 6pm
| Quantity | Price |
|---|---|
| 1+ | $16.050 |
Price for:Each
Minimum: 1
Multiple: 1
$16.05
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ARDUINO |
|---|---|
| Manufacturer Part No | TSX00002Copy |
| Manufacturer Standard Lead Time | 4 weeks |
| Newark Part No. | 47AC6340 |
| Product Range | MKR Shields |
| Also Known As | GTIN UPC EAN: 813747020237 |
| Technical Datasheet | |
| Silicon Manufacturer | - |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Core Number | - |
| Silicon Family Name | - |
| For Use With | Arduino MKR Boards |
| Kit Contents | MKR Prototyping Large Shield Board |
| Product Range | MKR Shields |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview

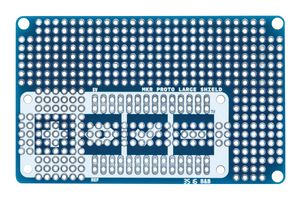

TSX00002 is a- MKR Proto Large Shield. It is a prototyping shield designed for use with the Arduino MKR form factor boards. It connects onto your MKR board using the included male and female headers. The shield offers a duplicate breakout for each pin on the board along with many solderable through-holes on a 2.54mm (0.1") grid.
- Features 300 soldering points
- Digital I/O pins: 21
- Analogue input pins: 7
- 3.14inch length x 1.96inch width
Technical Specifications
| Silicon Manufacturer | - |
|---|---|
| Core Sub-Architecture | - |
| Silicon Family Name | - |
| Kit Contents | MKR Prototyping Large Shield Board |
| SVHC | No SVHC (27-Jun-2024) |
| Core Architecture | - |
|---|---|
| Silicon Core Number | - |
| For Use With | Arduino MKR Boards |
| Product Range | MKR Shields |
Technical Docs (1)
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (27-Jun-2024) |
