10327
Cutter, End, 114 mm, Semi Flush, 1.25 mm, Technik Series
Image is for illustrative purposes only. Please refer to product description.
ManufacturerAVEN
Manufacturer Part No10327
Newark Part No.26R8830
Product RangeTechnik Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 3 week(s)
| Quantity | Price |
|---|---|
| 1+ | $27.900 |
Price for:Each
Minimum: 1
Multiple: 1
$27.90
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAVEN
Manufacturer Part No10327
Newark Part No.26R8830
Product RangeTechnik Series
Technical Datasheet
Cutter TypeEnd
Overall Length114mm
Cut TypeSemi Flush
Cutting Capacity Max1.25mm
Cutting Edge Hardness-
Product RangeTechnik Series
SVHCNo SVHC (14-Jun-2023)
Product Overview

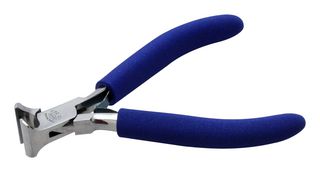

10327 is a 4.5" stainless steel end cutter with ESD safe grip. It is used to cut close to the surface of your material, leaving a smooth surface behind. The box joint construction for durability and perfect jaw alignment. Its dual leaf springs ensure opening and closing is comfortable. The ESD safe grips provides protection against static as well as extra comfort for repetitive work. Mirror finished stainless steel (400 series) provides superior rust protection compared with standard carbon steel pliers.
- Induction hardened jaws for durability
- Cutting edge is semi-flush induction hardened 50-52HRC
- Cutting capacity is 0.2 to 1.25mm soft copper wire
- Cutting blade length is 0.688inch
- Head width is 0.466inch
- 10 ohm per square inch ESD resistivity
Technical Specifications
Cutter Type
End
Cut Type
Semi Flush
Cutting Edge Hardness
-
SVHC
No SVHC (14-Jun-2023)
Overall Length
114mm
Cutting Capacity Max
1.25mm
Product Range
Technik Series
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (14-Jun-2023)
Download Product Compliance Certificate
Product Compliance Certificate
