K50LGRY2PQ
Indicator, EZ-LIGHT, Flashing, Steady, 30VDC IP67, 50mm Dia., 38mm Ext. Depth

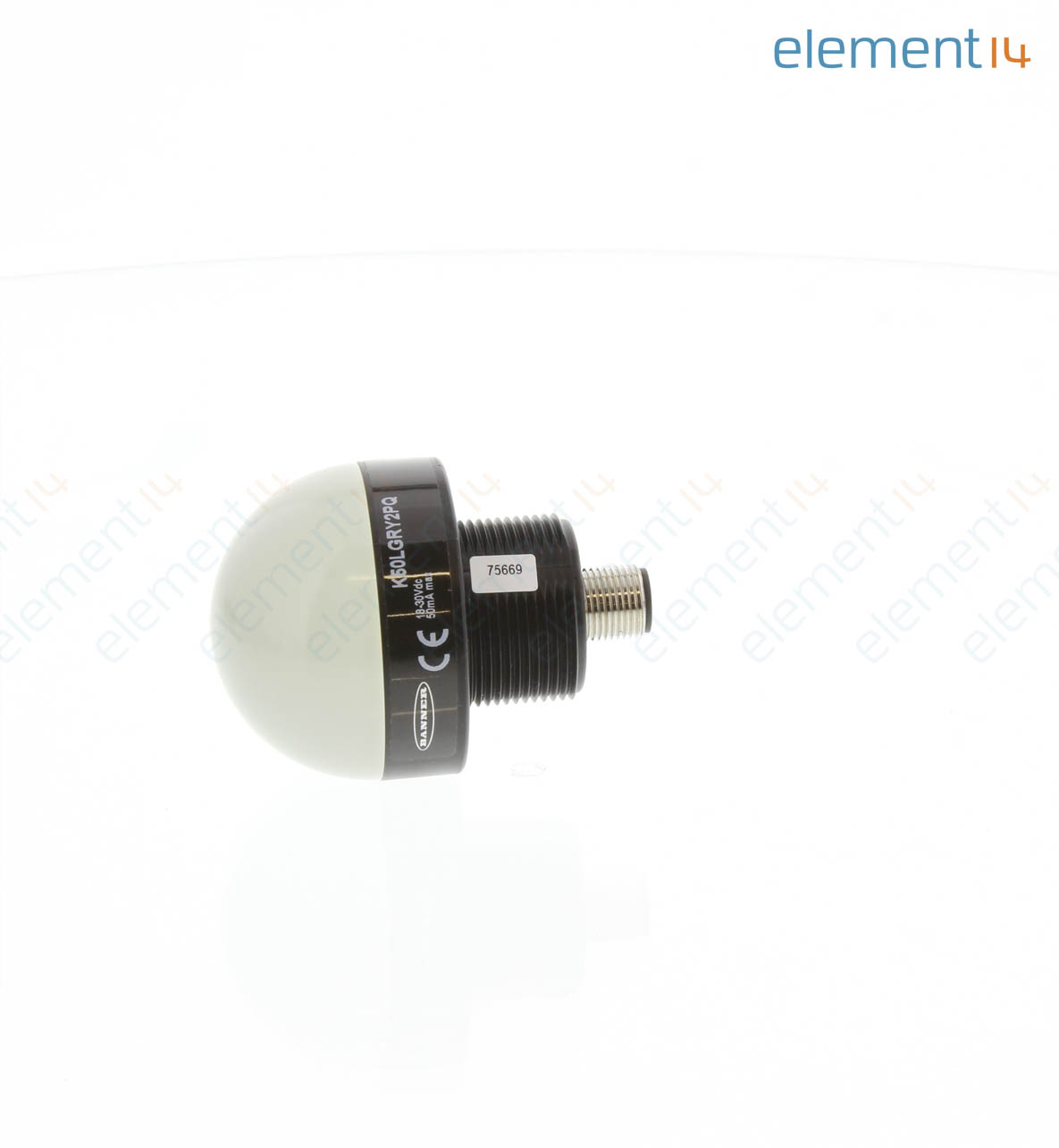

Image is for illustrative purposes only. Please refer to product description.
ManufacturerBANNER ENGINEERING
Manufacturer Part NoK50LGRY2PQ
Newark Part No.20M0541
Product RangeEZ-LIGHT™ Series
Technical Datasheet
44 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $168.920 |
Price for:Each
Minimum: 1
Multiple: 1
$168.92
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBANNER ENGINEERING
Manufacturer Part NoK50LGRY2PQ
Newark Part No.20M0541
Product RangeEZ-LIGHT™ Series
Technical Datasheet
Module Lens ColourGreen, Red, Yellow
Supply Voltage VAC-
Supply Voltage VDC30V
Visual Signal TypeFlashing, Steady
Lens Diameter50mm
Product RangeEZ-LIGHT™ Series
IP / NEMA RatingIP67
Power Rating-
External Height38mm
Operating Temperature Min-40°C
Operating Temperature Max50°C
SVHCNo SVHC (15-Jan-2018)
Product Overview
The K50LGRY2PQ is a 3-color multifunction EZ-LIGHT™ DC-operated Indicator Light with 30mm threaded polycarbonate base and translucent polycarbonate dome. Intense levels of light output for outdoor applications.
- Euro-style quick-disconnect
- PNP (sourcing) input
- Green, red and yellow light functions
- Rugged and easy-to-install
- Up to three colors in one housing
- Immune to ambient light, EMI and RFI interference
- Fully encapsulated construction
Applications
Automation & Process Control, Imaging, Video & Vision
Technical Specifications
Module Lens Colour
Green, Red, Yellow
Supply Voltage VDC
30V
Lens Diameter
50mm
IP / NEMA Rating
IP67
External Height
38mm
Operating Temperature Max
50°C
Supply Voltage VAC
-
Visual Signal Type
Flashing, Steady
Product Range
EZ-LIGHT™ Series
Power Rating
-
Operating Temperature Min
-40°C
SVHC
No SVHC (15-Jan-2018)
Technical Docs (3)
Associated Products
4 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2018)
