MBCC-512
Sensor Cable, Quick Disconnect, 7/8"-16-2B Receptacle, Free End, 5 Positions, 4 m, 13.123 ft

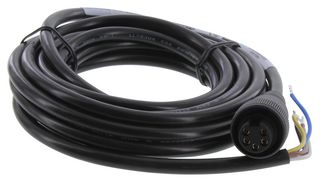

Image is for illustrative purposes only. Please refer to product description.
ManufacturerBANNER ENGINEERING
Manufacturer Part NoMBCC-512
Newark Part No.21H1184
Your Part Number
Technical Datasheet
51 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $98.110 |
Price for:Each
Minimum: 1
Multiple: 1
$98.11
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerBANNER ENGINEERING
Manufacturer Part NoMBCC-512
Newark Part No.21H1184
Technical Datasheet
Connector Type A7/8"-16-2B Receptacle
Connector Type ACircular 5 Position Receptacle
Connector to Connector7/8"-16-2B Receptacle to Free End
Connector Type BFree End
Connector Type BFree End
No. of Positions5 Positions
Cable Length - Metric4m
Cable Length - Imperial13.123ft
Product Range-
SVHCNo SVHC (15-Jan-2018)
Product Overview
The MBCC-512 is a mini-straight Cable Connector with PVC jacket and PUR (polyurethane) connector body. This 4m 5-pin sensor cable features gold-plated contacts and nylon coupling nut. This cable is suitable to use with Q45 laser retro, OMNI-BEAM AC power blocks, OMNI-BEAM DC with e/m relay, OTB and LTB with SPDT relay, Q45 5-wire AC and STB with e/m relay.
- 18AWG high-flex stranded conductor
- -40 to 90°C Temperature range
Applications
Sensing & Instrumentation
Technical Specifications
Connector Type A
7/8"-16-2B Receptacle
Connector to Connector
7/8"-16-2B Receptacle to Free End
Connector Type B
Free End
Cable Length - Metric
4m
Product Range
-
Connector Type A
Circular 5 Position Receptacle
Connector Type B
Free End
No. of Positions
5 Positions
Cable Length - Imperial
13.123ft
SVHC
No SVHC (15-Jan-2018)
Technical Docs (2)
Associated Products
6 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2018)
