83284 009100
Coaxial Cable, Hi Temp MIL-C-33, RG316, 26 AWG, 50 ohm, 100 ft, 30.48 m

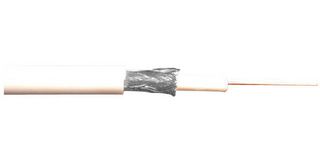

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 17 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $727.990 |
| 5+ | $699.830 |
| 10+ | $675.700 |
Price for:Spool of 100
Minimum: 1
Multiple: 1
$727.99
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBELDEN
Manufacturer Part No83284 009100
Newark Part No.02F5771
Technical Datasheet
Coaxial Cable TypeRG316
Wire Gauge26AWG
Conductor Area CSA-
Impedance50ohm
Reel Length (Imperial)100ft
Reel Length (Metric)30.48m
Jacket ColorWhite
Jacket MaterialFEP
Conductor MaterialSPCCS (Silver Plated Copper Coated Steel)
No. of Max Strands x Strand Size7 x 34AWG
External Diameter2.49mm
Product Range-
SVHCNo SVHC (10-Jun-2022)
Product Overview
The 83284 009100 is a white RG316 Coaxial Cable with tetrafluoroethylene (TFE) insulation, silver-plated copper covered steel conductor and fluorinated ethylene propylene (FEP) jacket. The coaxial cable features silver-plated copper braid shield (95% coverage).
- 0.219μH/m Nominal inductance
- 95.14pF/m Conductor to shield nominal capacitance
- 69.5% Nominal velocity of propagation
- 4.85ns/m Nominal delay
- 900VRMS Voltage
- -70 to +200°C Operating temperature range
- 900VRMS Voltage
Applications
Defence, Military & Aerospace
Technical Specifications
Coaxial Cable Type
RG316
Conductor Area CSA
-
Reel Length (Imperial)
100ft
Jacket Color
White
Conductor Material
SPCCS (Silver Plated Copper Coated Steel)
External Diameter
2.49mm
SVHC
No SVHC (10-Jun-2022)
Wire Gauge
26AWG
Impedance
50ohm
Reel Length (Metric)
30.48m
Jacket Material
FEP
No. of Max Strands x Strand Size
7 x 34AWG
Product Range
-
Technical Docs (1)
Associated Products
6 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (10-Jun-2022)
