9258 010U500
Coaxial Cable, RG8X, 16 AWG, 50 ohm, 500 ft, 152.4 m

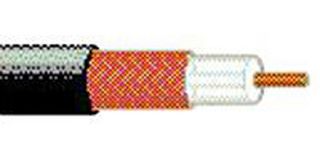

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Delivery estimated post order confirmations.You will be charged on despatch.
| Quantity | Price |
|---|---|
| 1+ | $1,646.290 |
| 5+ | $1,582.620 |
| 10+ | $1,528.040 |
Price for:Spool of 500
Minimum: 1
Multiple: 1
$1,646.29
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBELDEN
Manufacturer Part No9258 010U500
Newark Part No.03F2937
Technical Datasheet
Coaxial Cable TypeRG8X
Wire Gauge16AWG
Conductor Area CSA-
Impedance50ohm
Reel Length (Imperial)500ft
Reel Length (Metric)152.4m
Jacket ColorBlack
Jacket MaterialPVC
Conductor MaterialCopper
No. of Max Strands x Strand Size19 x 29AWG
External Diameter6.15mm
Product Range-
SVHCNo SVHC (10-Jun-2022)
Product Overview
The 9258 010U500 is a Coaxial Cable with 16AWG stranded bare copper conductor and a gas-injected foam polyethylene insulation. This coax-RG-8X type cable comes with a black PVC jacket and bare copper braid shield (95% coverage). The coaxial cable is perhaps the most common, basic and easy-to-understand cables. Basically, this cable is used to transmit electrical energy or signals, from one location to another, to connect a source to a load, such as a transmitter to an antenna.
- 333.615N Maximum recommended pulling tension
- 0.213265µH/m Nominal inductance
- 82% Nominal velocity of propagation
- 14.1083Ω/km at 20°C Nominal conductor DC resistance (DCR)
- -40 to 80°C Operating temperature range
Applications
Communications & Networking
Technical Specifications
Coaxial Cable Type
RG8X
Conductor Area CSA
-
Reel Length (Imperial)
500ft
Jacket Color
Black
Conductor Material
Copper
External Diameter
6.15mm
SVHC
No SVHC (10-Jun-2022)
Wire Gauge
16AWG
Impedance
50ohm
Reel Length (Metric)
152.4m
Jacket Material
PVC
No. of Max Strands x Strand Size
19 x 29AWG
Product Range
-
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (10-Jun-2022)
