VWP-FLEX-451
Video Wall Controller Chassis, Intel i5, 240GB SSD, 16GB RAM, 4 Slot, 4U Rackmount

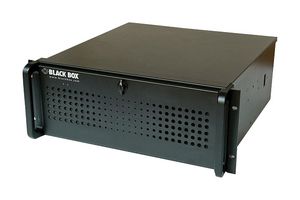

Image is for illustrative purposes only. Please refer to product description.
ManufacturerBLACK BOX
Manufacturer Part NoVWP-FLEX-451
Newark Part No.03AH3500
Product RangeRadian Flex Series
Technical Datasheet
Available to Order
Delivery estimated post order confirmations.You will be charged on despatch.
| Quantity | Price |
|---|---|
| 1+ | $13,236.750 |
Price for:Each
Minimum: 1
Multiple: 1
$13,236.75
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBLACK BOX
Manufacturer Part NoVWP-FLEX-451
Newark Part No.03AH3500
Product RangeRadian Flex Series
Technical Datasheet
Operating System SoftwareWindows 10
Processor TypeIntel Core i5
Computer Case StyleDesktop
RAM Memory Size16GB
Hard Drive Capacity240GB
Onboard GraphicsHDMI, DisplayPort
Expansion Slots4 x PCI-Ex x8
Product RangeRadian Flex Series
Plug Type-
External Height - Metric175mm
External Width - Metric482mm
External Depth - Metric500mm
SVHCTo Be Advised
Product Overview
VWP-FLEX-451 is a RADIAN FLEX chassis. Radian is a hybrid hardware and software solution. The chassis uses a high-performance enterprise-grade motherboard that connects to a Radian PCIe backplane. The backplane contains 4 PCIe slots for use with compatible Radian cards, including video capture, graphics and IP decoding cards.
- Supports up to 64 video outputs
- Supports hundreds of video inputs
- Freely position any source anywhere on the video wall
- Easy to use-drag, drop, resize and scale
- True 4K60 input and output support via DisplayPort
- Wide range of input cards for any video format: COMPONENT/COMPOSITE/SDI/HDMI/VGA/DP/DVI/IP (H.264)
- Outputs include DisplayPort, DVI, AND HDMI, real-time, multi-user wall control
- Provides the ability to run software applications on the wall control processor
- 240GB hard drive capacity, Windows 10 operating system software, Intel Core i5 processor, 16GB RAM
- 0 to 35°C temperature range, dimension is 6.9" H x 19" W x 19.6" D
Technical Specifications
Operating System Software
Windows 10
Computer Case Style
Desktop
Hard Drive Capacity
240GB
Expansion Slots
4 x PCI-Ex x8
Plug Type
-
External Width - Metric
482mm
SVHC
To Be Advised
Processor Type
Intel Core i5
RAM Memory Size
16GB
Onboard Graphics
HDMI, DisplayPort
Product Range
Radian Flex Series
External Height - Metric
175mm
External Depth - Metric
500mm
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
