1-282836-0
Wire-To-Board Terminal Block, 5 mm, 10 Positions, 30 AWG, 16 AWG, 1.3 mm², Screw

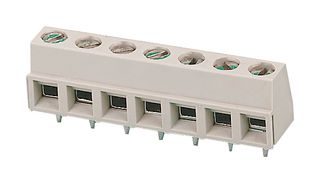

Image is for illustrative purposes only. Please refer to product description.
ManufacturerBUCHANAN - TE CONNECTIVITY
Manufacturer Part No1-282836-0
Newark Part No.09H8238
Product RangeBuchanan Series
Technical Datasheet
785 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $2.020 |
| 10+ | $2.020 |
| 25+ | $2.020 |
| 50+ | $2.020 |
| 100+ | $2.020 |
| 500+ | $2.020 |
| 1000+ | $2.020 |
Price for:Each
Minimum: 1
Multiple: 1
$2.02
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBUCHANAN - TE CONNECTIVITY
Manufacturer Part No1-282836-0
Newark Part No.09H8238
Product RangeBuchanan Series
Technical Datasheet
Pitch Spacing5mm
No. of Positions10Positions
Wire Size AWG Min30AWG
Wire Size AWG Max16AWG
Conductor Area CSA1.3mm²
Wire Connection MethodScrew
Rated Current13.5A
Rated Voltage300V
Block OrientationThrough Hole Right Angle
Product RangeBuchanan Series
SVHCLead
Alternatives for 1-282836-0
1 Product Found
Product Overview
The 1-282836-0 is a 10-position 1-row low profile PCB Terminal Block with a 5mm centreline, side wire entry and M3 screw clamp terminals that accept a wire size range of 30 to 16AWG. This 5.0mm low profile PCB terminal block have an interlocking feature and is made from green polyamide 6.6 GF housing and tin-plated brass contacts. Ease of assembly is facilitated by built-in interlocks on the housings.
- Vertical mounting angle
- Nickel-plated brass screw
- Easy to assembly
- -40 to +105°C Operating temperature range
Technical Specifications
Pitch Spacing
5mm
Wire Size AWG Min
30AWG
Conductor Area CSA
1.3mm²
Rated Current
13.5A
Block Orientation
Through Hole Right Angle
SVHC
Lead
No. of Positions
10Positions
Wire Size AWG Max
16AWG
Wire Connection Method
Screw
Rated Voltage
300V
Product Range
Buchanan Series
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
