1546306-3

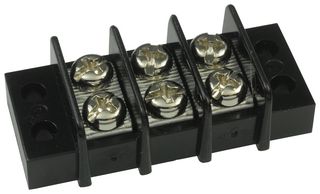

Panel Mount Barrier Terminal Block, 2 Row, 3 Positions, 22 AWG, 12 AWG, 9.53 mm, 20 A
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY - BUCHANAN
Manufacturer Part No1546306-3Copy
Newark Part No.07J5418
Your Part Number
2,672 In Stock
Need more?
FREE Standard Delivery
on orders over $200
| Quantity | Price |
|---|---|
| 1+ | $3.440 |
| 10+ | $2.550 |
| 25+ | $2.240 |
| 50+ | $2.050 |
| 100+ | $1.760 |
| 500+ | $1.630 |
| 1000+ | $1.480 |
| 2500+ | $1.440 |
Price for:Each
Minimum: 1
Multiple: 1
$3.44
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY - BUCHANAN
Manufacturer Part No1546306-3Copy
Newark Part No.07J5418
Technical Datasheet
No. of Rows2 Row
No. of Positions3Positions
Wire Size AWG Min22AWG
Wire Size AWG Max12AWG
Pitch Spacing9.53mm
Rated Current20A
Rated Voltage300V
Product Range-
SVHCNo SVHC (04-Feb-2026)
Product Overview
The 1546306-3 is a 3-position 2-row flat Dual-barrier Strip with tin-plated brass contacts and thermoplastic housing. The 1-level black terminal block has quick connects terminations, binding head screws, UL94V-0 black thermoplastic insulator and nickel-plated #6-32 steel screw. The dual barrier strip for wire-to-wire applications. These parts also allow end users to complete the wiring to a separate screw without disturbing the factory wiring.
- Open end position mounting style
- Vertical mounting angle
- Increased current-carrying capability
- UL94V-0 Flammability rating
Applications
Industrial, Automation & Process Control, Test & Measurement, HVAC, Power Management, Communications & Networking
Technical Specifications
No. of Rows
2 Row
Wire Size AWG Min
22AWG
Pitch Spacing
9.53mm
Rated Voltage
300V
SVHC
No SVHC (04-Feb-2026)
No. of Positions
3Positions
Wire Size AWG Max
12AWG
Rated Current
20A
Product Range
-
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
