PTQ-11050

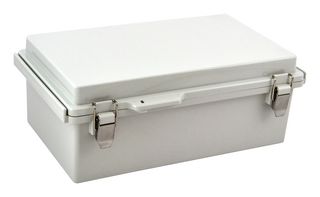

Plastic Enclosure, IP67, NEMA 4X, PCB Box, Polycarbonate, 100.1 mm, 260 mm, 160 mm, IP67
Image is for illustrative purposes only. Please refer to product description.
5 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $54.830 |
| 5+ | $50.270 |
| 10+ | $45.710 |
| 25+ | $40.500 |
Price for:Each
Minimum: 1
Multiple: 1
$54.83
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBUD INDUSTRIES
Manufacturer Part NoPTQ-11050
Newark Part No.46Y9717
Technical Datasheet
Enclosure TypePCB Box
Enclosure MaterialPolycarbonate
External Height - Metric100.1mm
External Width - Metric260mm
External Depth - Metric160mm
IP RatingIP67
Body ColorGray
NEMA RatingNEMA 1, 2, 4, 4x, 6
External Height - Imperial3.94"
External Width - Imperial10.2"
External Depth - Imperial6.3"
Product Range-
SVHCNo SVHC (07-Nov-2024)
Product Overview
PTQ-11050 is a fiberglass box with stainless steel latch.
- External dimension is 10.24" x 6.3" x 3.94", internal dimension is 9.15" x 5.28" x 3.41" (L x W x D)
- Body made of gray polycarbonate (PC) resin 10% glass fiber filled
- Hinged Cover made of Gray Polycarbonate (PC)
- High impact resistance IK08
- Stainless steel latch
- IP67 TUV rating to keep out dust and water in extreme conditions (meets NEMA type 6)
- UL508 / UL tested for type 4X, listed #E194432
- Non-chlorinated & non-brominated flame retardant With UL-94 V0 and UL-94 5VA rating @ 3mm
- Suitable for outdoor use w.r.t exposure to UV light, water exposure, and immersion per UL 746C
- Extended -40°C to +95°C exposure condition
- Good chemical resistance
- Continuous gasket
Technical Specifications
Enclosure Type
PCB Box
External Height - Metric
100.1mm
External Depth - Metric
160mm
Body Color
Gray
External Height - Imperial
3.94"
External Depth - Imperial
6.3"
SVHC
No SVHC (07-Nov-2024)
Enclosure Material
Polycarbonate
External Width - Metric
260mm
IP Rating
IP67
NEMA Rating
NEMA 1, 2, 4, 4x, 6
External Width - Imperial
10.2"
Product Range
-
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
