CT2674A
Oscilloscope Probe, Passive, 100 MHz, 300 V, 1:1, 10:1, Oscilloscopes
Image is for illustrative purposes only. Please refer to product description.
ManufacturerCAL TEST ELECTRONICS
Manufacturer Part NoCT2674A
Newark Part No.69AC5494
Technical Datasheet
18 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $36.140 |
Price for:Each
Minimum: 1
Multiple: 1
$36.14
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCAL TEST ELECTRONICS
Manufacturer Part NoCT2674A
Newark Part No.69AC5494
Technical Datasheet
Oscilloscope Probe FunctionPassive
Bandwidth100MHz
Input Voltage Max300V
Test Probe Attenuation1:1, 10:1
For Use WithOscilloscopes
Product Range-
SVHCNo SVHC (17-Jan-2023)
Product Overview
CT2674A is a general purpose series 100MHz, 1x/10x switchable oscilloscope probe with additional REF switch position. The REF position grounds the input tip allowing for convenient trace levelling. It is a high quality, general purpose 5mm passive voltage oscilloscope probe.
- High impedance input (10Mohm/16pF - 10x position)
- Risetime is 58/3.5ns, output impedance is 1Mohm
- 10−35pF compensation range
- 300V CAT II IEC rating
- Meets IEC 61010-031 standards
- 1.2m cable length
- Operating temperature range from 0° to +50° C
Contents

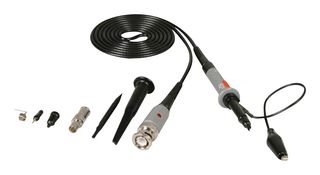

Passive oscilloscope probe, 15cm ground lead, Replacement tip, Black snap-on sprung hook, Tip cover, Tip insulator, IC tip, BNC adapter, Probe tip ground, Trimmer tool.
Technical Specifications
Oscilloscope Probe Function
Passive
Input Voltage Max
300V
For Use With
Oscilloscopes
SVHC
No SVHC (17-Jan-2023)
Bandwidth
100MHz
Test Probe Attenuation
1:1, 10:1
Product Range
-
