Print Page
2FA54-73
Toggle Switch, On-Off, SPST, Non Illuminated, F Series, 10 A

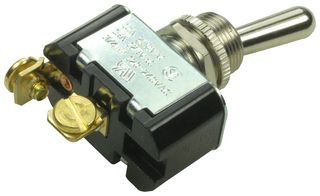

Image is for illustrative purposes only. Please refer to product description.
ManufacturerCARLING TECHNOLOGIES
Manufacturer Part No2FA54-73
Newark Part No.73K1401
Product RangeF Series
Technical Datasheet
1,156 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $8.690 |
| 5+ | $8.000 |
| 10+ | $7.650 |
| 25+ | $6.950 |
| 50+ | $6.750 |
| 100+ | $6.520 |
| 250+ | $5.650 |
Price for:Each
Minimum: 1
Multiple: 1
$8.69
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCARLING TECHNOLOGIES
Manufacturer Part No2FA54-73
Newark Part No.73K1401
Product RangeF Series
Technical Datasheet
Switch OperationOn-Off
Contact ConfigurationSPST
IlluminationNon Illuminated
Product RangeF Series
Switch Mounting-
Contact Current Max10A
Contact Voltage AC Nom250V
Switch TerminalsScrew
Contact Voltage DC Nom-
SVHCNo SVHC (16-Jul-2019)
Product Overview
The 2FA54-73 is a 1-pole Toggle Switch with screw terminal. It features On-None-Off operating function, unsealed baton style toggle and slow-make, slow-break contact mechanism. It has storied history in the marine, food service and generators.
- 100000-cycle mechanical durability
- 50000-cycle electrical durability
- 1000V-live to dead metal parts UL/CSA rated dielectric strength
- 0°F to 150°F operating temperature
Applications
Industrial, Defence, Military & Aerospace, Automation & Process Control
Technical Specifications
Switch Operation
On-Off
Illumination
Non Illuminated
Switch Mounting
-
Contact Voltage AC Nom
250V
Contact Voltage DC Nom
-
Contact Configuration
SPST
Product Range
F Series
Contact Current Max
10A
Switch Terminals
Screw
SVHC
No SVHC (16-Jul-2019)
Technical Docs (1)
Alternatives for 2FA54-73
2 Products Found
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (16-Jul-2019)
