CFS-20632768DZBB
Crystal, Cylinder, 32.768 kHz, Cylinder Radial, 6.2mm x 2mm Dia, 6 pF, 20 ppm, CFS206 Series

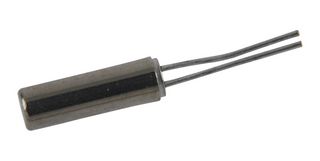

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | CITIZEN FINEDEVICE |
|---|---|
| Manufacturer Part No | CFS-20632768DZBBCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Newark Part No. | 59K7603 |
| Product Range | CFS206 Series |
| Your Part Number | |
| Technical Datasheet |
27,142 In Stock
Need more?
FREE Standard Delivery
on orders over $200
| Quantity | Price |
|---|---|
| 1+ | $0.348 |
| 10+ | $0.307 |
| 100+ | $0.267 |
| 500+ | $0.242 |
| 1000+ | $0.232 |
| 2500+ | $0.225 |
| 10000+ | $0.217 |
| 25000+ | $0.213 |
Price for:Each
Minimum: 1
Multiple: 1
$0.35
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | CITIZEN FINEDEVICE |
|---|---|
| Manufacturer Part No | CFS-20632768DZBBCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Newark Part No. | 59K7603 |
| Product Range | CFS206 Series |
| Technical Datasheet | |
| Product Range | CFS206 Series |
| Frequency Nom | 32.768kHz |
| Crystal Type | Tuning Fork |
| Crystal Frequency | 32.768kHz |
| Frequency Tolerance + / - | 20ppm |
| Frequency Stability + / - | - |
| Load Capacitance | 6pF |
| ESR | 35kohm |
| Crystal Case / Package | Cylinder Radial, 6.2mm x 2mm Dia |
| No. of Pins | 2Pins |
| Crystal Mounting | Through Hole |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| SVHC | No SVHC (14-Jun-2023) |
Product Overview
The CFS-20632768DZBB is a 2-pin through-hole cylindrical tuning fork Crystal Unit for a clock source in digital equipment. This device known as quartz, derive the frequency that is the basis of the motion timing in various equipment by applying its extremely regular oscillation.
Applications
Clock & Timing, Portable Devices
Technical Specifications
| Product Range | CFS206 Series |
|---|---|
| Crystal Type | Tuning Fork |
| Frequency Tolerance + / - | 20ppm |
| Load Capacitance | 6pF |
| Crystal Case / Package | Cylinder Radial, 6.2mm x 2mm Dia |
| Crystal Mounting | Through Hole |
| Operating Temperature Max | 70°C |
| Frequency Nom | 32.768kHz |
|---|---|
| Crystal Frequency | 32.768kHz |
| Frequency Stability + / - | - |
| ESR | 35kohm |
| No. of Pins | 2Pins |
| Operating Temperature Min | -20°C |
| SVHC | No SVHC (14-Jun-2023) |
Technical Docs (2)
Alternatives for CFS-20632768DZBB
1 Product Found
Associated Products
6 Products Found
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (14-Jun-2023) |
