CFS-20632768DZFB

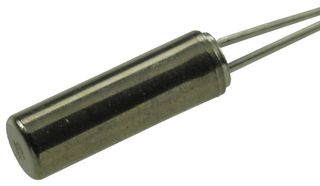

Crystal, Cylinder, 32.768 kHz, Cylinder Radial, 6.2mm x 2mm Dia, 12.5 pF, 20 ppm, CFS206 Series
Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | CITIZEN FINEDEVICE |
|---|---|
| Manufacturer Part No | CFS-20632768DZFBCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Newark Part No. | 53K9029 |
| Product Range | CFS206 Series |
| Your Part Number | |
| Technical Datasheet |
24,842 In Stock
Need more?
FREE Standard Delivery
on orders over $200
| Quantity | Price |
|---|---|
| 1+ | $0.434 |
| 10+ | $0.365 |
| 100+ | $0.315 |
| 500+ | $0.297 |
| 1000+ | $0.251 |
| 2500+ | $0.249 |
| 10000+ | $0.242 |
| 25000+ | $0.238 |
Price for:Each
Minimum: 1
Multiple: 1
$0.43
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | CITIZEN FINEDEVICE |
|---|---|
| Manufacturer Part No | CFS-20632768DZFBCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Newark Part No. | 53K9029 |
| Product Range | CFS206 Series |
| Technical Datasheet | |
| Product Range | CFS206 Series |
| Frequency Nom | 32.768kHz |
| Crystal Type | Tuning Fork |
| Crystal Frequency | 32.768kHz |
| Frequency Tolerance + / - | 20ppm |
| Frequency Stability + / - | - |
| Load Capacitance | 12.5pF |
| ESR | 35kohm |
| Crystal Case / Package | Cylinder Radial, 6.2mm x 2mm Dia |
| No. of Pins | 2Pins |
| Crystal Mounting | Through Hole |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| SVHC | No SVHC (14-Jun-2023) |
Product Overview
The CFS-20632768DZFB is a 32.768kHz Cylindrical Crystal for portable devices with low current consumption. Superior characteristics indigenous to tuning fork-type quartz crystal units. Features excellent shock resistance and low power consumption.
- For a clock source in digital equipment
Applications
Clock & Timing, Communications & Networking, Test & Measurement
Technical Specifications
| Product Range | CFS206 Series |
|---|---|
| Crystal Type | Tuning Fork |
| Frequency Tolerance + / - | 20ppm |
| Load Capacitance | 12.5pF |
| Crystal Case / Package | Cylinder Radial, 6.2mm x 2mm Dia |
| Crystal Mounting | Through Hole |
| Operating Temperature Max | 70°C |
| Frequency Nom | 32.768kHz |
|---|---|
| Crystal Frequency | 32.768kHz |
| Frequency Stability + / - | - |
| ESR | 35kohm |
| No. of Pins | 2Pins |
| Operating Temperature Min | -20°C |
| SVHC | No SVHC (14-Jun-2023) |
Technical Docs (2)
Alternatives for CFS-20632768DZFB
2 Products Found
Associated Products
5 Products Found
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (14-Jun-2023) |
