CM41532768DZFT
Crystal, Surface Mount, 32.768 kHz, SMD, 4.1mm x 1.5mm, 12.5 pF, 20 ppm, CM415 Series

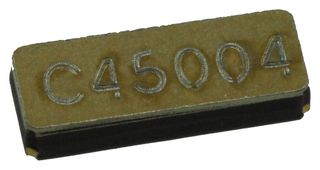

Image is for illustrative purposes only. Please refer to product description.
ManufacturerCITIZEN FINEDEVICE
Manufacturer Part NoCM41532768DZFT
Newark Part No.13J2287
Product RangeCM415 Series
Technical Datasheet
43,534 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.983 |
| 25+ | $0.983 |
| 50+ | $0.983 |
| 100+ | $0.983 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.98
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCITIZEN FINEDEVICE
Manufacturer Part NoCM41532768DZFT
Newark Part No.13J2287
Product RangeCM415 Series
Technical Datasheet
Frequency Nom32.768kHz
Crystal CaseSMD, 4.1mm x 1.5mm
Frequency Stability + / --
Load Capacitance12.5pF
Frequency Tolerance + / -20ppm
Product RangeCM415 Series
Operating Temperature Min-40°C
Operating Temperature Max85°C
SVHCNo SVHC (14-Jun-2023)
Product Overview
- Tuning fork crystal unit
- 32.768KHz frequency, applications consumer products
- ±20ppm (STD) frequency tolerance ( at 25℃)
- 12.5pF F (STD) load capacitance
- ±3ppm maximum aging (first year) (25°C±3°C)
- 1μW maximum level of drive
- Operating temperature range from -40 to +85°C
Technical Specifications
Frequency Nom
32.768kHz
Frequency Stability + / -
-
Frequency Tolerance + / -
20ppm
Operating Temperature Min
-40°C
SVHC
No SVHC (14-Jun-2023)
Crystal Case
SMD, 4.1mm x 1.5mm
Load Capacitance
12.5pF
Product Range
CM415 Series
Operating Temperature Max
85°C
Alternatives for CM41532768DZFT
4 Products Found
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (14-Jun-2023)
