MKRAWT-02-0000-0D0HH20E5
LED, Neutral White, 80 CRI Rating, 15 W, 900 lm, 700 mA, 120 °, 4000 K, 2828 Package, Dome

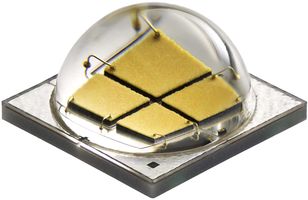

Image is for illustrative purposes only. Please refer to product description.
ManufacturerCREE LED
Manufacturer Part NoMKRAWT-02-0000-0D0HH20E5Copy
Manufacturer Standard Lead Time14 weeks
Newark Part No.
Full Reel28X4753
Re-Reel53W6796
Cut Tape53W6796
Product RangeXLamp MK-R Series
Your Part Number
7 In Stock
Need more?
FREE Standard Delivery
on orders over $200
Available in quantity shown. To order more than shown inventory, contact sales
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | $15.690 | $15.69 |
| Total Price | $15.69 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 1+ | $15.690 |
| 50+ | $14.070 |
| 100+ | $13.350 |
| 250+ | $12.000 |
| 500+ | $10.990 |
| 1000+ | $9.850 |
| 2500+ | $9.360 |
| 5000+ | $8.790 |
Full Reel
| Quantity | Price |
|---|---|
| 250+ | $8.430 |
| 500+ | $8.180 |
| 1000+ | $7.690 |
| 1500+ | $7.320 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerCREE LED
Manufacturer Part NoMKRAWT-02-0000-0D0HH20E5Copy
Manufacturer Standard Lead Time14 weeks
Newark Part No.
Full Reel28X4753
Re-Reel53W6796
Cut Tape53W6796
Product RangeXLamp MK-R Series
Technical Datasheet
COB ColorNeutral White
Color Rendering Index Max80
Power Rating15W
Luminous Flux @ Test900lm
Forward Current @ Test700mA
Viewing Angle120°
Forward Voltage VF Typ12V
Nominal CCT (K)4000 K
COB Length7mm
COB Width7mm
Opto Case Style2828
Lumens / Watt @ Current Test147lm/W
Light Emitting Surface-
Lens Type-
Lens ShapeDome
Height4.08mm
Product RangeXLamp MK-R Series
SVHCNo SVHC (10-Jun-2022)
Technical Specifications
COB Color
Neutral White
Power Rating
15W
Forward Current @ Test
700mA
Forward Voltage VF Typ
12V
COB Length
7mm
Opto Case Style
2828
Light Emitting Surface
-
Lens Shape
Dome
Product Range
XLamp MK-R Series
Color Rendering Index Max
80
Luminous Flux @ Test
900lm
Viewing Angle
120°
Nominal CCT (K)
4000 K
COB Width
7mm
Lumens / Watt @ Current Test
147lm/W
Lens Type
-
Height
4.08mm
SVHC
No SVHC (10-Jun-2022)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (10-Jun-2022)
