S2-03P
Reed Relay, SPST-NO, 3 VDC, S2 Series, Through Hole, 250 ohm, 250 mA

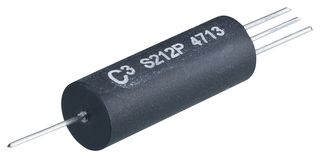

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSENSATA / CYNERGY3
Manufacturer Part NoS2-03P
Newark Part No.59Y7860
Product RangeS2 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 11 week(s)
| Quantity | Price |
|---|---|
| 1+ | $19.260 |
Price for:Each
Minimum: 20
Multiple: 20
$385.20
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSENSATA / CYNERGY3
Manufacturer Part NoS2-03P
Newark Part No.59Y7860
Product RangeS2 Series
Technical Datasheet
Contact ConfigurationSPST-NO
Coil Voltage3VDC
Product RangeS2 Series
Relay MountingThrough Hole
Coil Resistance250ohm
Switching Current Max250mA
Switching Voltage Max200V
Product Overview
The S2 series axial style Reed Relay has been developed for applications where PCB mounting is not possible. The relay can be mounted in a variety of methods and orientations to suit particular applications. The lead-out wires are flexible enough to allow bending for assembly into equipment. It is available with either a 10/50W contact in a pressurised reed switch or a 100W contact in an evacuated reed switch.
- Variable mounting options
- Reliable reed switch contacts
Applications
Industrial, Test & Measurement
Technical Specifications
Contact Configuration
SPST-NO
Product Range
S2 Series
Coil Resistance
250ohm
Switching Voltage Max
200V
Coil Voltage
3VDC
Relay Mounting
Through Hole
Switching Current Max
250mA
SVHC
No SVHC (25-Jun-2020)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2020)
