551-0500
Banana Test Connector, 4mm, Jack, Panel Mount, 10 A, 50 V, Silver Plated Contacts, Red

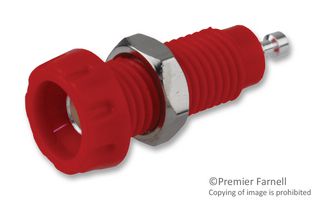

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | DELTRON COMPONENTS |
|---|---|
| Manufacturer Part No | 551-0500Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Newark Part No. | 45M6865 |
| Product Range | 551 Series |
| Your Part Number | |
| Technical Datasheet |
322 In Stock
Need more?
FREE Standard Delivery
on orders over $200
| Quantity | Price |
|---|---|
| 1+ | $1.820 |
| 10+ | $1.540 |
| 25+ | $1.470 |
| 50+ | $1.450 |
| 100+ | $1.380 |
| 250+ | $1.260 |
| 500+ | $1.140 |
| 1000+ | $1.010 |
Price for:Each
Minimum: 1
Multiple: 1
$1.82
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | DELTRON COMPONENTS |
|---|---|
| Manufacturer Part No | 551-0500Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Newark Part No. | 45M6865 |
| Product Range | 551 Series |
| Technical Datasheet | |
| Gender | Jack |
| Connector Mounting | Panel Mount |
| Current Rating | 10A |
| Voltage Rating | 50V |
| Contact Plating | Silver Plated Contacts |
| Connector Colour | Red |
| Contact Material | Brass |
| Contact Termination Type | Solder |
| Product Range | 551 Series |
| SVHC | No SVHC (10-Jun-2022) |
Product Overview
The 551-0500 is a 4mm Panel Mounting Socket with silver-plated brass contacts. It is made of polypropylene with red finish and solder connection. Rigid panel mounting socket retained in place by a nut, which accepts 4mm diameter plugs. The socket is suitable for panels up to 13.5mm thick.
- Nickel-plated brass nut
- <lt/>10mΩ Contact resistance
- 1500VDC Maximum absolute rating
Applications
Test & Measurement
Technical Specifications
| Gender | Jack |
|---|---|
| Current Rating | 10A |
| Contact Plating | Silver Plated Contacts |
| Contact Material | Brass |
| Product Range | 551 Series |
| Connector Mounting | Panel Mount |
|---|---|
| Voltage Rating | 50V |
| Connector Colour | Red |
| Contact Termination Type | Solder |
| SVHC | No SVHC (10-Jun-2022) |
