521-9450F
LED, Green, Red, Through Hole, T-1 3/4 (5mm), 65 °, Round, R 25mA, G 25mA

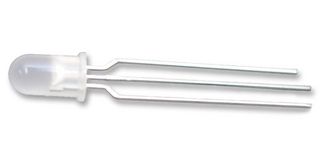

Image is for illustrative purposes only. Please refer to product description.
ManufacturerDIALIGHT
Manufacturer Part No521-9450F
Newark Part No.30K0606
Product Range521 Series
Technical Datasheet
1,153 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $3.010 |
| 10+ | $2.200 |
| 25+ | $2.010 |
| 50+ | $1.820 |
| 100+ | $1.630 |
| 250+ | $1.570 |
| 500+ | $1.520 |
| 1000+ | $1.390 |
Price for:Each
Minimum: 1
Multiple: 1
$3.01
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerDIALIGHT
Manufacturer Part No521-9450F
Newark Part No.30K0606
Product Range521 Series
Technical Datasheet
LED ColorGreen, Red
LED MountingThrough Hole
Bulb SizeT-1 3/4 (5mm)
Viewing Angle65°
Lens ShapeRound
Forward Current / ColorR 25mA, G 25mA
Luminous Intensity / ColorR 5mcd, G 8mcd
Forward Voltage / ColorR 2.1V, G 2.3V
Wavelength / ColourR 635nm, G 565nm
Product Range521 Series
Automotive Qualification Standard-
MSL-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 521-9450F is a 5mm red/green Discrete LED Lamp with non-tinted diffused lens. This LED lamp features 626nm (red) and 569nm (green) peak wavelength.
- -20 to 85°C Operating temperature range
Applications
LED Lighting
Technical Specifications
LED Color
Green, Red
Bulb Size
T-1 3/4 (5mm)
Lens Shape
Round
Luminous Intensity / Color
R 5mcd, G 8mcd
Wavelength / Colour
R 635nm, G 565nm
Automotive Qualification Standard
-
SVHC
No SVHC (21-Jan-2025)
LED Mounting
Through Hole
Viewing Angle
65°
Forward Current / Color
R 25mA, G 25mA
Forward Voltage / Color
R 2.1V, G 2.3V
Product Range
521 Series
MSL
-
