557-1602-203F
LED Panel Mount Indicator, Watertight, Green, 5 VDC, 17.463 mm, 16 mA, 1000 foot lambert, Not Rated

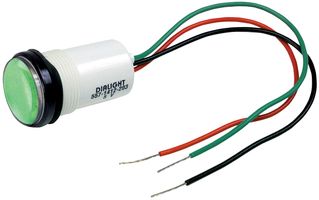

Image is for illustrative purposes only. Please refer to product description.
ManufacturerDIALIGHT
Manufacturer Part No557-1602-203F
Newark Part No.33M4334
Product Range557 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 16 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $23.800 |
| 5+ | $21.030 |
| 10+ | $18.270 |
| 25+ | $17.800 |
| 50+ | $17.320 |
| 100+ | $16.850 |
Price for:Each
Minimum: 1
Multiple: 1
$23.80
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerDIALIGHT
Manufacturer Part No557-1602-203F
Newark Part No.33M4334
Product Range557 Series
Technical Datasheet
LED ColorGreen
Operating Voltage5VDC
Mounting Hole Dia17.463mm
Forward Current If16mA
Luminous Intensity1000foot lambert
IP / NEMA RatingNot Rated
Product Range557 Series
Product Overview
The 557-1602-203F is a high intensity panel-mount green Watertight LED Indicator for 11/16-inch mounting hole. This indicator incorporates both InGaN and AlInGaP technologies to offer higher intensities. This is designed to withstand outdoor applications susceptible to rain, dust and sunlight.
- Watertight seal from front of panel meets MIL-L-3661B
- White polycarbonate housing
- Flat polycarbonate lens
- UL94V-0 Flammability rating
- Uniform illumination
- Daylight viewability
- Tamperproof/designed for high durability
Applications
LED Lighting, Defence, Military & Aerospace, Sensing & Instrumentation, Safety, Consumer Electronics, Automotive, Logistics, Avionics
Technical Specifications
LED Color
Green
Mounting Hole Dia
17.463mm
Luminous Intensity
1000foot lambert
Product Range
557 Series
Operating Voltage
5VDC
Forward Current If
16mA
IP / NEMA Rating
Not Rated
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Alternatives for 557-1602-203F
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
