606-2211-110F
LED Panel Mount Indicator, Green, 2 VDC, 6 mm, 15 mA, 30 mcd, Not Rated

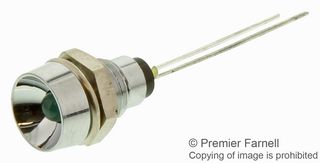

Image is for illustrative purposes only. Please refer to product description.
ManufacturerDIALIGHT
Manufacturer Part No606-2211-110F
Newark Part No.30K5065
Product Range606 Series
Technical Datasheet
96 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $9.730 |
| 10+ | $6.520 |
| 25+ | $6.330 |
| 50+ | $6.130 |
| 100+ | $5.940 |
| 250+ | $5.790 |
| 500+ | $5.630 |
| 1000+ | $5.300 |
Price for:Each
Minimum: 1
Multiple: 1
$9.73
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerDIALIGHT
Manufacturer Part No606-2211-110F
Newark Part No.30K5065
Product Range606 Series
Technical Datasheet
LED ColorGreen
Operating Voltage2VDC
Mounting Hole Dia6mm
Forward Current If15mA
Luminous Intensity30mcd
IP / NEMA RatingNot Rated
Product Range606 Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 606-2211-110F is a green panel-mount LED Indicator made of chrome-plated brass housing. The low power consumption uses up to 90% less energy than an incandescent indicator.
- No heat generated
- Long life, lasting up to 100K hours
- -25 to 85°C Operating temperature range
Applications
Industrial, Signalling
Technical Specifications
LED Color
Green
Mounting Hole Dia
6mm
Luminous Intensity
30mcd
Product Range
606 Series
Operating Voltage
2VDC
Forward Current If
15mA
IP / NEMA Rating
Not Rated
SVHC
No SVHC (21-Jan-2025)
