612-3232-140F
LED Panel Mount Indicator, Green, 24 VDC, 12 mm, 15 mA, 110 mcd, Not Rated

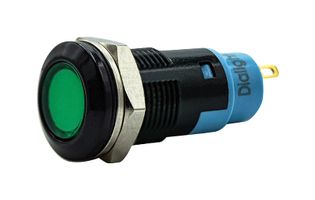

Image is for illustrative purposes only. Please refer to product description.
304 In Stock
275 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $7.480 |
| 10+ | $5.340 |
| 25+ | $5.130 |
| 50+ | $4.910 |
| 100+ | $4.700 |
| 250+ | $4.450 |
| 500+ | $4.200 |
| 1000+ | $3.900 |
Price for:Each
Minimum: 1
Multiple: 1
$7.48
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerDIALIGHT
Manufacturer Part No612-3232-140F
Newark Part No.32M1610
Technical Datasheet
LED ColorGreen
Operating Voltage24VDC
Mounting Hole Dia12mm
Forward Current If15mA
Luminous Intensity110mcd
IP / NEMA RatingNot Rated
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 612-3232-140F is a panel-mount green LED Indicator with polycarbonate housing and lens for 12mm mounting hole. It has lock washer and nut mounting method, low power consumption uses up to 90% less energy than an incandescent indicator.
- Long life - Typically 100K hours
- No heat generated
- Electrical connection through solder terminals
Applications
LED Lighting, Sensing & Instrumentation
Technical Specifications
LED Color
Green
Mounting Hole Dia
12mm
Luminous Intensity
110mcd
Product Range
-
Operating Voltage
24VDC
Forward Current If
15mA
IP / NEMA Rating
Not Rated
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
