MCC TC-32-EXP
Thermocouple Input Expansion Device, TC-32 Data Acquisition System

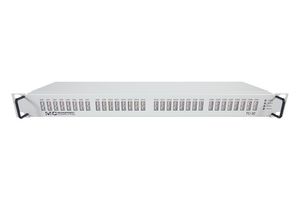

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 2 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $2,417.210 |
Price for:Each
Minimum: 1
Multiple: 1
$2,417.21
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerDIGILENT
Manufacturer Part NoMCC TC-32-EXP
Newark Part No.62AK4538
Technical Datasheet
Product TypeThermocouple Input Expansion Device
For Use WithDigilent TC-32 Data Acquisition (DAQ) System
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
TC-32-EXP is a 32-channel thermocouple input expansion device for TC-32 with 8 digital inputs and 32 digital outputs/ alarms It adds 32 differential thermocouple (TC) inputs to TC-32 for a total of 64 TC channels (includes 40-pin ribbon cable for connecting to TC-32)).
- Two 24-bit ADCs (one ADC per 16 inputs)
- TC channels field-to-host isolation
- 3s/s per update rate
- Support for type J, K, R, S, T, N, E, and B thermocouples, software-selectable per channel
- One integrated cold junction compensation (CJC) sensor per TC input
- Open thermocouple detection (OTD) to detect faulty TC connections
- 8 digital inputs, isolated from TC and host
- 32 digital outputs/alarms isolated from TC inputs and host
- DIO connections are made to 50-pin header connector
- Powered by host TC-32
Contents
32-channel thermocouple input expansion device, 40-pin ribbon cable.
Technical Specifications
Product Type
Thermocouple Input Expansion Device
Product Range
-
For Use With
Digilent TC-32 Data Acquisition (DAQ) System
SVHC
No SVHC (21-Jan-2025)
