DDZ9699-7

Zener Single Diode, 12 V, 500 mW, SOD-123, 5 %, 2 Pins, 150 °C

DDZ9699-7 - Zener Single Diode, 12 V, 500 mW, SOD-123, 5 %, 2 Pins, 150 °C

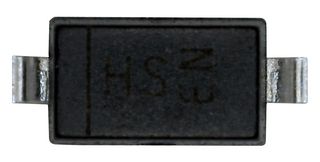

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
DDZ9699-7
Newark Part No.:
82T8882
Technical Datasheet:
DDZ9699-7   Datasheet
See all Technical Docs

Product Overview

The DDZ9699-7 is a surface mount low current Zener Diode with moulded plastic case, matte tin annealed over Alloy 42 lead frame terminals and cathode band connection. It is ideally suited for automated assembly processes.
  • 500mW Power dissipation on ceramic PCB
  • Specified at a low test current (50μA), ideal for low bias and portable battery-powered applications
  • Totally lead-free
  • Halogen and antimony-free - Green device

Applications

Automation & Process Control

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
12V

:
500mW

:
SOD-123

:
5%

:
2Pins

:
150°C

:
-

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

100 In stock Need more?

Delivery in 2-4 business days
(UK Stock)

View all alternatives / recommendations

$0.472

Pricing is unavailable. Please contact customer services.

Price for:
Each (Supplied on Cut Tape)
Multiple: 5 Minimum: 5
