DPMP-403P
LCD DIGITAL PANEL METER WITH POWER ENGINEERING UNITS, LOOP POWERED 4 TO 20 MA, RED SEGMENTS. ROHS COMPLIANT: YES

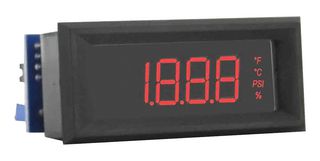

Image is for illustrative purposes only. Please refer to product description.
ManufacturerDWYER
Manufacturer Part NoDPMP-403PCopy
Manufacturer Standard Lead Time4 weeks
Newark Part No.82AK4446
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 4 week(s)
| Quantity | Price |
|---|---|
| 1+ | $185.770 |
Price for:Each
Minimum: 1
Multiple: 1
$185.77
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerDWYER
Manufacturer Part NoDPMP-403PCopy
Manufacturer Standard Lead Time4 weeks
Newark Part No.82AK4446
Technical Datasheet
SVHCNo SVHC (25-Jun-2025)
Product Overview
DPMP-403P is a series DPMP LCD digital panel meter. The snap-in bezel mount eliminates mounting hardware for quick installation. The DPMP has a high contrast display for easy viewing in a standard 1/8 DIN package. It displays process values from pressure, humidity, temperature, voltage, current, watt, or power factor transmitters.
- 4-20mA input
- V, A, KW, PF engineering units
- Powered by control loop
- 4-1/2 digits, 7 segments, 0.45˝display
- 3-position, user selectable
- Snap-in bezel mount
- Screw terminal connection
- Operating temperature range from 32 to 122°F (0 to 50°C)
- 24VDC at 35mA typical backlight power supply
- Red color segment
Technical Specifications
SVHC
No SVHC (25-Jun-2025)
Technical Docs (1)
Alternatives for DPMP-403P
1 Product Found
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
