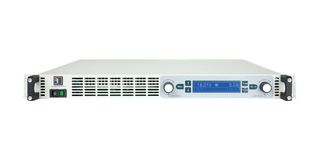

EA-PS 9500-10 1U
Modular Power Supply, 1 Outputs, 1.5 kW, Programmable, 0 V, 500 V, 10 A
Image is for illustrative purposes only. Please refer to product description.
ManufacturerEA ELEKTRO-AUTOMATIK
Manufacturer Part NoEA-PS 9500-10 1U
Newark Part No.46AK7069
Product RangeEA-PS 9000 1U Series
Technical Datasheet
1 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $4,767.700 |
Price for:Each
Minimum: 1
Multiple: 1
$4,767.70
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerEA ELEKTRO-AUTOMATIK
Manufacturer Part NoEA-PS 9500-10 1U
Newark Part No.46AK7069
Product RangeEA-PS 9000 1U Series
Technical Datasheet
No. of Slots / Outputs1Outputs
Output Power Max1.5kW
Power Supply Output TypeProgrammable
Output Voltage Min0V
Output Voltage Max500V
Output Current Max10A
Product RangeEA-PS 9000 1U Series
SVHCNo SVHC (08-Jul-2021)
Product Overview
EA-PS 9500-10 1U is a EA-PS 9000 1U microprocessor-controlled laboratory power supply offers many functions and features in their standard version, making the use of this equipment remarkably easy and most effective. All this comes in a flat design with only 44 mm (1.75”) of height. The clearly arranged control panel features two rotary knobs, six pushbuttons and two LEDs. Together with an illuminated, blue LCD display for all values and status it simplifies the use of the device.
- 100 to 264VAC, 1ph+N input, output power of 1.5KW
- Voltage range from 0 to 500VDC, current rating from 0 to 10A
- Flexible, power regulated output stage
- Various protection circuits (OVP, OCP, OPP, OTP)
- Control panel with pushbuttons and blue LCD for actual values, set values, status and alarms
- Remote sensing
- Share bus for support of parallel connection
- Very low height of only 1U (44mm)
- Temperature controlled fans for cooling
- USB and Ethernet port integrated, EMC according to EN 55022 Class B, SCPI command language supported
Technical Specifications
No. of Slots / Outputs
1Outputs
Power Supply Output Type
Programmable
Output Voltage Max
500V
Product Range
EA-PS 9000 1U Series
Output Power Max
1.5kW
Output Voltage Min
0V
Output Current Max
10A
SVHC
No SVHC (08-Jul-2021)
Technical Docs (1)
Legislation and Environmental
US ECCN:3A992A
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (08-Jul-2021)
