M22-RJ45-SA
Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat5e, IP20, IP65, Cable Mount

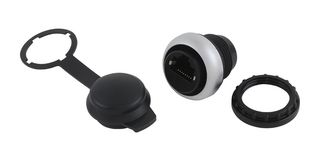

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEATON CUTLER HAMMER
Manufacturer Part NoM22-RJ45-SA
Newark Part No.10R1860
Also Known AsGTIN UPC EAN: 786685283128
Technical Datasheet
558 In Stock
10 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $106.330 |
| 5+ | $97.820 |
| 10+ | $88.780 |
| 25+ | $81.860 |
Price for:Each
Minimum: 1
Multiple: 1
$106.33
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerEATON CUTLER HAMMER
Manufacturer Part NoM22-RJ45-SA
Newark Part No.10R1860
Also Known AsGTIN UPC EAN: 786685283128
Technical Datasheet
Modular Connector TypeRJ45 Jack
Port Configuration1 x 1 (Port)
No. of Positions / Loaded Contacts (per Port)8P8C
LAN CategoryCat5e
IP RatingIP20, IP65
Connector MountingCable Mount
Connector OrientationStraight
ShieldingShielded
MagneticsWithout Magnetics
LEDsWithout LED
Light PipesWithout Light Pipe
Product Range-
SVHCNo SVHC (17-Dec-2015)
Product Overview
M22-RJ45-SA is a M22 modular pushbutton RJ45 socket.
- Suitable for M22 series modular pushbutton switches
- Used for RJ45 Ethernet connection IP65 when closed, IP20 when connected
- Silver bezel
- 1.17inch length/depth, 0.39inch height, 1.17inch width
- CCC, CSA certified
- IP20 environmental rating
Technical Specifications
Modular Connector Type
RJ45 Jack
No. of Positions / Loaded Contacts (per Port)
8P8C
IP Rating
IP20, IP65
Connector Orientation
Straight
Magnetics
Without Magnetics
Light Pipes
Without Light Pipe
SVHC
No SVHC (17-Dec-2015)
Port Configuration
1 x 1 (Port)
LAN Category
Cat5e
Connector Mounting
Cable Mount
Shielding
Shielded
LEDs
Without LED
Product Range
-
Technical Docs (2)
Associated Products
8 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:No
SVHC:No SVHC (17-Dec-2015)
