M22-DDL-GR-X1/X0
Switch Actuator, Double, Eaton M22 Series Modular Pushbutton Switches, IP66, NEMA 4X, NEMA 13

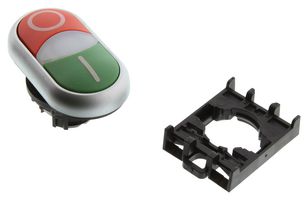

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEATON MOELLER
Manufacturer Part NoM22-DDL-GR-X1/X0
Newark Part No.26C5741
Product RangeRMQ-Titan M22 Series
Technical Datasheet
15 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $82.990 |
| 10+ | $70.530 |
| 25+ | $67.220 |
| 50+ | $63.900 |
Price for:Each
Minimum: 1
Multiple: 1
$82.99
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEATON MOELLER
Manufacturer Part NoM22-DDL-GR-X1/X0
Newark Part No.26C5741
Product RangeRMQ-Titan M22 Series
Technical Datasheet
For Use WithEaton M22 Series Modular Pushbutton Switches
IP / NEMA RatingIP66, NEMA 4X, NEMA 13
Product RangeRMQ-Titan M22 Series
SVHCNo SVHC (17-Dec-2015)
Product Overview
M22-DDL-GR-X1/X0 is an Eaton Moeller® series M22 double actuator pushbutton. It is certified by VDE 0660, CSA Class No.: 3211-03, CSA-C22.2 No. 14-05, UL, UL 508, CSA File No.: 012528, DNV, IEC/EN 60947-5, CSA-C22.2 No. 94-91, IEC/EN 60947, GL, LR, UL Category Control No.: NKCR, UL File No.: E29184, CSA.
- Titanium bezel colour, plastic bezel material
- Classical non-flush design, fitted with front ring
- White lens colour, 200,000 operations mechanical lifespan
- IP66, NEMA 13, NEMA 3R, NEMA 12, NEMA 4X degree of protection
- 3600 operations/h operating frequency, suitable for illumination
- 5N actuating force, green/red actuator colour, spring-return momentary actuator function
- Product dimension is 30 x 55 x 30mm (L x H x W)
- Ambient operating temperature range from -25 to 70°C
Technical Specifications
For Use With
Eaton M22 Series Modular Pushbutton Switches
Product Range
RMQ-Titan M22 Series
IP / NEMA Rating
IP66, NEMA 4X, NEMA 13
SVHC
No SVHC (17-Dec-2015)
Technical Docs (2)
Associated Products
4 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Dec-2015)
