8411K13

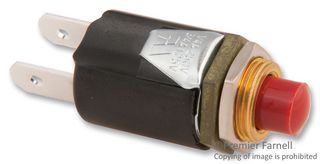

Door Switch, Red, PB Type, Round Plunger, SPST-NO, 125 V, 750 mA, Momentary
Image is for illustrative purposes only. Please refer to product description.
1,751 In Stock
488 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $9.030 |
| 5+ | $8.300 |
| 10+ | $7.950 |
| 25+ | $7.220 |
| 50+ | $7.010 |
| 100+ | $6.770 |
Price for:Each
Minimum: 1
Multiple: 1
$9.03
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerEATON
Manufacturer Part No8411K13
Newark Part No.20M3071
Technical Datasheet
Pushbutton Switch TypeStandard
Switch Actuator StyleRound Plunger
Panel Cutout Diameter-
Contact ConfigurationSPST-NO
Contact Voltage AC Max125V
Contact Current AC Max750mA
Contact Voltage DC Nom250V
Contact Current Max6A
Switch OperationMomentary
Pushbutton Actuator StyleRound
Actuator / Cap ColourRed
Switch TerminalsQuick Connect, Solder Lug
Actuator Travel Min-
Contact Voltage VAC125V
Actuator Travel Max-
Contact Current DC Max750mA
Switch MountingPanel Mount
Qualification-
Contact Voltage VDC125V
IP Rating-
Illumination ColorNon Illuminated
Panel Cutout (H x W)-
Product Range-
SVHCNo SVHC (17-Dec-2015)
Product Overview
The 8411K13 is a single-pole single-throw (SPST) light-duty non-illuminated AC Pushbutton with spade terminals, nylon red button and ON function. The switch features slow-make/slow-break butt type silver-plated copper NO contacts with a light operating pressure.
- Momentary action
- Threaded Bushing Mounting
- -17.8 to 65.6°C Operating temperature range
Applications
Consumer Electronics, Sensing & Instrumentation, Communications & Networking, Medical, Commercial
Technical Specifications
Pushbutton Switch Type
Standard
Panel Cutout Diameter
-
Contact Voltage AC Max
125V
Contact Voltage DC Nom
250V
Switch Operation
Momentary
Actuator / Cap Colour
Red
Actuator Travel Min
-
Actuator Travel Max
-
Switch Mounting
Panel Mount
Contact Voltage VDC
125V
Illumination Color
Non Illuminated
Product Range
-
Switch Actuator Style
Round Plunger
Contact Configuration
SPST-NO
Contact Current AC Max
750mA
Contact Current Max
6A
Pushbutton Actuator Style
Round
Switch Terminals
Quick Connect, Solder Lug
Contact Voltage VAC
125V
Contact Current DC Max
750mA
Qualification
-
IP Rating
-
Panel Cutout (H x W)
-
SVHC
No SVHC (17-Dec-2015)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:No
SVHC:No SVHC (17-Dec-2015)
