634-W15-262-012
D Sub Connector, HD15, IP67, High Density, Receptacle, 634 Series, 15 Contacts, DE, Solder

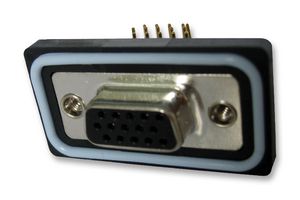

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEDAC
Manufacturer Part No634-W15-262-012Copy
Manufacturer Standard Lead Time13 weeks
Newark Part No.93X6012
Product Range634 Series
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 13 week(s)
| Quantity | Price |
|---|---|
| 336+ | $21.080 |
Price for:Each
Minimum: 336
Multiple: 336
$7,082.88
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerEDAC
Manufacturer Part No634-W15-262-012Copy
Manufacturer Standard Lead Time13 weeks
Newark Part No.93X6012
Product Range634 Series
Technical Datasheet
D Sub Connector TypeHigh Density
Product Range634 Series
No. of Contacts15Contacts
D Sub Shell SizeDE
Contact Termination TypeSolder
Connector MountingThrough Hole Mount Right Angle
Contact MaterialCopper Alloy
Contact PlatingGold over Nickel Plated Contacts
Connector Body MaterialSteel Body
SVHCLead (25-Jun-2025)
Product Overview
The 634 series UNC threaded-hole high density waterproof D-Sub-miniature Connectors Receptacle with selective gold plating all over nickel under-plate. It has nickel plated steel shell with black colour PBT with glass fibre insulator.
- 3A Current rating per pin
- 5000MΩ Insulation resistance (minimum)
- 10mΩ Contact resistance (maximum)
- UL94V-0 Flammability
- IP67 Protection
- -55 to 105°C Operating temperature
Applications
Communications & Networking, Computers & Computer Peripherals, Industrial
Technical Specifications
D Sub Connector Type
High Density
Product Range
634 Series
D Sub Shell Size
DE
Connector Mounting
Through Hole Mount Right Angle
Contact Plating
Gold over Nickel Plated Contacts
SVHC
Lead (25-Jun-2025)
Gender
Receptacle
No. of Contacts
15Contacts
Contact Termination Type
Solder
Contact Material
Copper Alloy
Connector Body Material
Steel Body
Technical Docs (3)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (25-Jun-2025)
