C-S-R
Contact, Connector, Test, PCB, Solder, Probe, 1.91 mm, Radius, 5 A, 10.03 mm, 1 oz

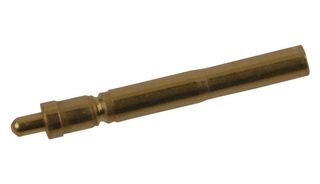

Image is for illustrative purposes only. Please refer to product description.
5 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $10.710 |
| 10+ | $10.710 |
| 25+ | $10.710 |
| 50+ | $10.710 |
| 100+ | $10.710 |
| 250+ | $10.710 |
Price for:Pack of 10
Minimum: 1
Multiple: 1
$10.71
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEVERETT CHARLES TECH
Manufacturer Part NoC-S-R
Newark Part No.46F3778
Technical Datasheet
Connector TypeProbe
Centerline Spacing1.91mm
Connector Tip StyleRadius
Current Rating5A
Overall Length10.03mm
Spring Force Initial1oz
Spring Force Working Travel4oz
Product Range-
SVHCNo SVHC (17-Jan-2023)
Product Overview
The C-S-R is an epoxy mount Non-replaceable Probe with gold-plated stainless steel spring. It has Heat-treated gold-plated beryllium copper plunger, gold-plated brass barrel and gold-plated stainless steel ball.
- -55 to 150°C Operating temperature range
- <30mΩ Average DC resistance
Applications
Test & Measurement, Industrial
Technical Specifications
Connector Type
Probe
Connector Tip Style
Radius
Overall Length
10.03mm
Spring Force Working Travel
4oz
SVHC
No SVHC (17-Jan-2023)
Centerline Spacing
1.91mm
Current Rating
5A
Spring Force Initial
1oz
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (17-Jan-2023)
