P2757G-1C1S
Contact, Connector, Test, PCB, Spring Loaded Probe, 4.75 mm, Point, 20 A, 30.73 mm, 2 oz

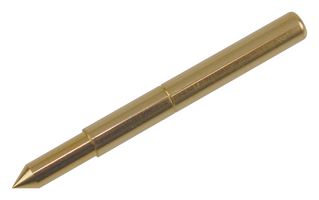

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | EVERETT CHARLES TECH |
|---|---|
| Manufacturer Part No | P2757G-1C1SCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Newark Part No. | 50F5615 |
| Product Range | P2757 Series |
| Your Part Number | |
| Technical Datasheet |
12 In Stock
Need more?
FREE Standard Delivery
on orders over $200
| Quantity | Price |
|---|---|
| 5+ | $73.040 |
| 10+ | $66.260 |
| 25+ | $64.330 |
| 50+ | $63.040 |
| 100+ | $60.000 |
Price for:Pack of 10
Minimum: 5
Multiple: 5
$365.20
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | EVERETT CHARLES TECH |
|---|---|
| Manufacturer Part No | P2757G-1C1SCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Newark Part No. | 50F5615 |
| Product Range | P2757 Series |
| Technical Datasheet | |
| Connector Type | Spring Loaded Probe |
| Centerline Spacing | 4.75mm |
| Connector Tip Style | Point |
| Current Rating | 20A |
| Overall Length | 30.73mm |
| Spring Force Initial | 2oz |
| Spring Force Working Travel | 4oz |
| Product Range | P2757 Series |
| SVHC | No SVHC (17-Jan-2023) |
Product Overview
The P2757G-1C1S is a Test Spring Probe with gold-plated plunger and socket. This test spring probe features 60° point contact tip. Biasing-ball construction maximizes wiping contact of plunger to inner diameter of probe body. Pylon replaceable spring-loaded POGO® contacts provide high performance in testing and interconnect applications utilizing spring probe technology. Gold-plated contact body provides superior surface conditioning for consistently low contact resistance over life (typically 1000000 cycles).
- <lt/>10mΩ Electrical resistance
Applications
Test & Measurement
Technical Specifications
| Connector Type | Spring Loaded Probe |
|---|---|
| Connector Tip Style | Point |
| Overall Length | 30.73mm |
| Spring Force Working Travel | 4oz |
| SVHC | No SVHC (17-Jan-2023) |
| Centerline Spacing | 4.75mm |
|---|---|
| Current Rating | 20A |
| Spring Force Initial | 2oz |
| Product Range | P2757 Series |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (17-Jan-2023) |
