0431163951

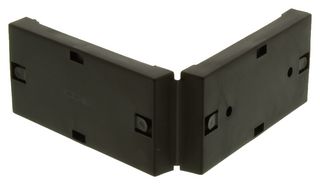

The 0431163951 is a flat cable Core Assembly with 31-grade material. A MZn ferrite designed specifically for EMI suppression applications from as low as 1 up to 500MHz. This material does not have the dimensional resonance limitations associated with conventional MZn ferrite materials. The flat cable snap-it for use on multi-conductor flat cables to suppress common-mode conducted EMI from 1MHz to hundreds of MHz. The polypropylene case meets the RoHS restrictions of hazardous substances and have a flammability rating of UL94V-0. Minimum impedance values are specified for the + marked frequencies. Centred, single turn impedance tests on the 31 material parts are performed on the 4193A vector impedance analyser.

• Controlled for impedances only
• Cores are tested with the shortest practical wire length
• Minimum impedance is typically the listed value less 20%

Applications

Industrial
