FLUKE-TC01A 9HZ

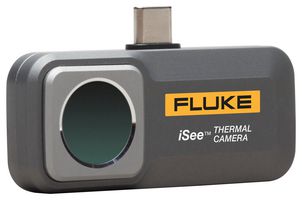

FLUKE-TC01A 9HZ is a Fluke iSee™ mobile thermal camera. With the Fluke iSee™ mobile thermal camera, temperature can be measured and thermal imaging detection can be carried out anytime and anywhere by conveniently inserting it into the Type C of a smartphone. Experience fast and easy inspections on the go with Fluke iSee™ mobile Thermal Camera, weighing just 22g. It takes only a second to start using. The wide temperature measurement range, up to 550°C (1022°F), makes it suitable for various applications, including inspecting electrical cabinets, identifying HVAC issues, and installing underfloor heating. Fluke iSee boasts professional-grade image quality, comparable to high-end thermal cameras, with a 256 x 192 pixel thermal resolution and smooth video recording at a 9Hz frame rate. Additionally, our software offers comprehensive spot, line, and area temperature analysis for precise diagnostics.

• 9Hz frame rate
• Temperature range from -10°C to 550°C/14°F to 1022°F
• ±2% or ±2°C/3.6°F accuracy to ensure reliable results
• Temperature measurement distance 0.25m to 5m (-20℃/-4°F to 10℃/50°F, only for 0.25m to 3m)
• 50mk (0.05°C or 0.0.09°F) thermal sensitivity for fine differences
• Customize image view with more than 10 standard or custom color palettes
• 3.2mm fixed focal length, internal shutter mode, 3.81mrad spatial resolution
• Spectral range 8 to 14 μm, Field of view (H x V) 56° x 42°
• IEC 60529: IP54 rated (with the protective cover for Type C)
• Dimension (L x W x H) is 2.36 x 1.32 x 0.44in

Contents

TC01A thermal camera, Packaging box, User manual.
