LV202E

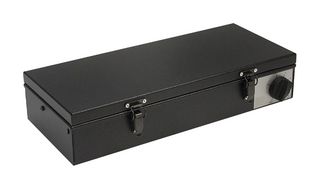

Lightbox, UV Ultra Violet Exposure Unit, 240mm x 165mm Working Area, 420mm x 175mm x 90mm External
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 11 week(s)
Product Information
ManufacturerFORTEX
Manufacturer Part NoLV202E
Newark Part No.66AJ7329
Technical Datasheet
Light SourceUV
Length420mm
Width175mm
Depth90mm
Working Area240mm x 165mm
Product Range-
Plug TypeUK Type G
SVHCNo SVHC (23-Jan-2024)
Product Overview
LV202E ultraviolet UV exposure unit is a high-quality British-built UV unit that has been designed for use in the preparation of photosensitive materials for many industries including the production of photoresist printed circuit board PCBs, hot foil polymer plates, production of cyanotypes, letterpress polymer plates, pad printing plates (Clichés), sandblasting stencils, glassetching stencils, rubber stamps, etc.
- Exposure area 240 x 165mm
- 2x 8W actinic fluorescent UV tubes
- Glass plate with high UV transparency for UV-A transmission
- Electronic ballast with no stroboscopic effect and no flicker
- Constant and even pressure from cellular film in lid and glass plate
- All metal construction with steel case, peak wavelength 365nm
- Power 2.5mW/cm² with even and high intensity illumination facilitated by high quality reflector
- Mains on/off switch and indicator, mains cable and 13A plug
- 220-240VAC 50Hz 30watts power consumption
- Dimensions of unit 420 x 175 x 90mm
Technical Specifications
Light Source
UV
Width
175mm
Working Area
240mm x 165mm
Plug Type
UK Type G
Length
420mm
Depth
90mm
Product Range
-
SVHC
No SVHC (23-Jan-2024)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
