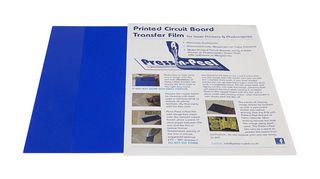

PRESS-5

PRESS-5 is a press n peel PCB heat toner laser transfer sheet (5 sheets). It allows high-quality metal parts for Jewelry making and PCBs resist layouts to be rapidly produced making user design ready to etch, removing the need for UV exposure and Developing chemicals. PnP Blue is a Mylar (Polyester) backed material in which several layers of release agents and resist coatings are applied. An image is printed or photocopied onto this film, using any standard laser printer or photocopier (Dry toner based), and subsequently, the Press n Peel film is ironed, laminated, or heat pressed onto a cleaned copper-clad board. The material will work with many different types of metal including Silver, Copper, stainless steel, etc. The image print area applied to the film is subsequently transferred to the copper-clad laminate circuit board, along with the high-quality resist (blue). The film is then removed and the resulting board is ready to etch in Ferric Chloride.

• 5 sheets, press n peel size is 216 x 279mm
