232-2601-00-0602

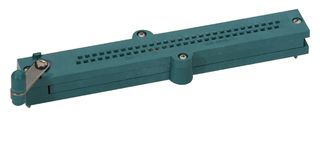

IC & Component Socket, 32 Contacts, SIP Socket, 2.54 mm, 3.66 mm, Beryllium Copper
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Fabricant3M
Réf. Fabricant232-2601-00-0602
Code Commande85K7846
Egalement appeléGTIN UPC EAN: 00051115304415 JE150378295
Fiche technique
Disponible sur commande
Délais d’approvisionnement standard du fabricant : 12 semaine(s)
Informations produit
Fabricant3M
Réf. Fabricant232-2601-00-0602
Code Commande85K7846
Egalement appeléGTIN UPC EAN: 00051115304415 JE150378295
Fiche technique
No. of Contacts32Contacts
Connector TypeSIP Socket
Pitch Spacing2.54mm
Product Range-
Row Pitch3.66mm
Contact MaterialBeryllium Copper
Contact PlatingGold Plated Contacts
SVHCTo Be Advised
Aperçu du produit
The 232-2601-00-0602 is a 32-contact 0.1-inch in-line ZIP Strip Socket for single-in-line packages. It can be used in sets of two or more to create a socket for non-standard leaded packages on 0.1-inch centres. It has green glass filled polysulfone insulation and beryllium copper contacts.
- Lever actuated zero insertion force mechanism
- Ganging bar included to enable mass actuation
- Accepts pins up to 0.025" square
- Socket contact point of 0.085" below top surface of socket
- 1A Current rating
- <gt/>1 x 10⁹Ω at 500VDC Insulation resistance
- UL94V-0 Flammability rating
- -55 to 150°C Temperature range
Applications
Industrial
Spécifications techniques
No. of Contacts
32Contacts
Pitch Spacing
2.54mm
Row Pitch
3.66mm
Contact Plating
Gold Plated Contacts
Connector Type
SIP Socket
Product Range
-
Contact Material
Beryllium Copper
SVHC
To Be Advised
Documents techniques (1)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:À déterminer
SVHC :To Be Advised
